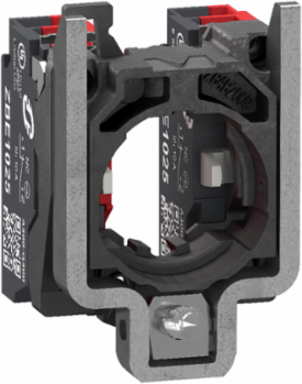

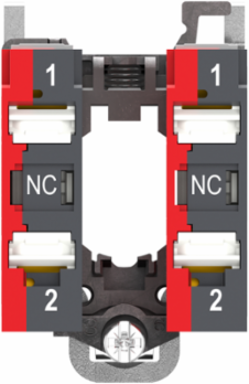

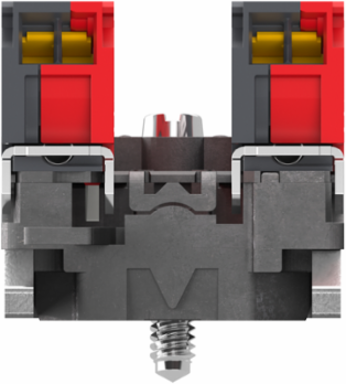

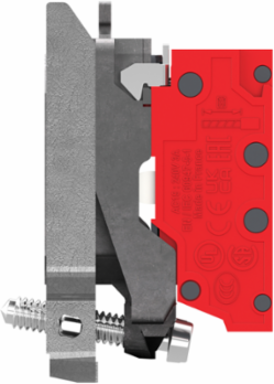

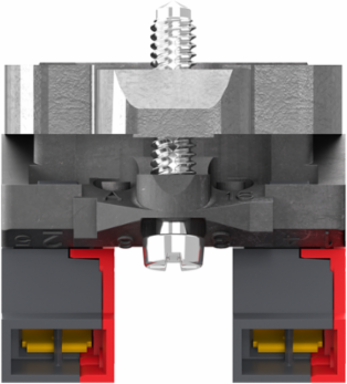

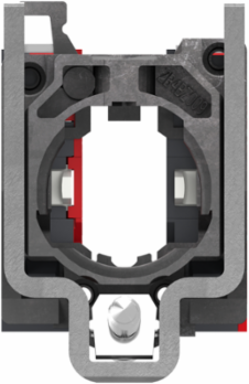

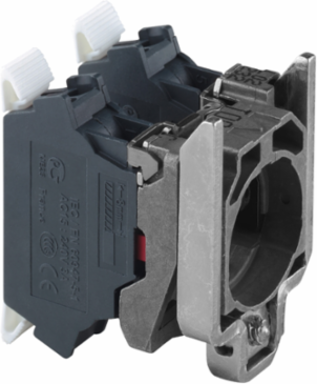

Schneider Electric ZB4BZ1045 Harmony XB4 Body Contact Assembly, Metal, 2NC, IP20, 0.054 kg

MPN: ZB4BZ1045
PPN: SCH-ZB4BZ1045
UNSPSC: 39122221

$45.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for reliable operation within automation and control systems, the Harmony XB4 Body Contact Assembly from Schneider Electric offers exceptional performance with its robust metal construction. Featuring two normally closed contacts and an IP20 protection rating, this contact assembly is well-suited for a variety of industrial applications where durability and efficiency are paramount. Its lightweight design makes it easy to install and integrate into existing systems, ensuring that users can maintain seamless operations in their pilot devices.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
A wide choice of contact blocks for general purposes or specific applications
Excellent mechanical connection with operator head
A large set of accessories to customize your panels
Tool-free installation enabled by push-in connections, ensuring effortless setup

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	61 g

Physical Attributes

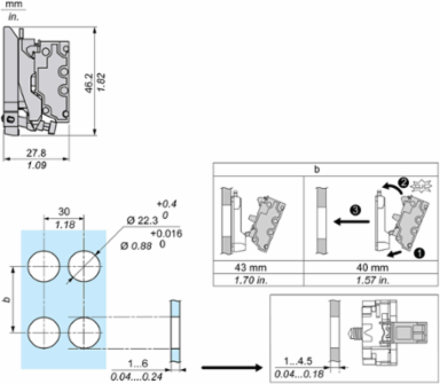

Cad Overall Depth	30 mm
Cad Overall Width	46.2 mm

Cad Overall Height	27.6 mm

Complementary Attributes

Ie Rated Operational Current	6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	4 kV IEC 60947-1

Ui Rated Insulation Voltage	300 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contacts Usage	standard contacts, standard contacts
Device Composition	body, fixing collar, body
Contacts Composition	2 NC
Terminals Description Iso N°1	(11-12)NC, (11-12)NC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.0771581257
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.4323691578
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	23 %
Contact Block Type	single
Contacts Material	silver alloy (Ag/Ni)
Device Short Name	ZB4
Head Type	standard
Operating Force	4.5 N NC changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Sustainable Packaging	Yes
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Connections Terminals	push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Shock Resistance	25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate Agency	EAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The Distribution Phase A4	0.0079770344, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0122347331, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.0521873239
Local Publishable Date	2026-03-26
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	16 %
Compatibility Code	ZB4
Contact Operation	slow-break
Contacts Type And Composition	2 NC
Fixing Collar Material	zamak
Mechanical Durability	10000000 cycles
Operating Travel	1.217 mm NC changing electrical state)4.3 mm total travel)
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 8 Connections Terminals	push-in
Data Source	extrapolated product
Customs Code	8536509035
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Functional Unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit
Recyclability Potential In %	84

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	16 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.581926375
