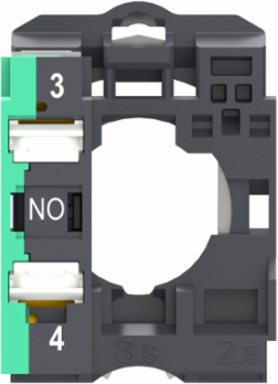

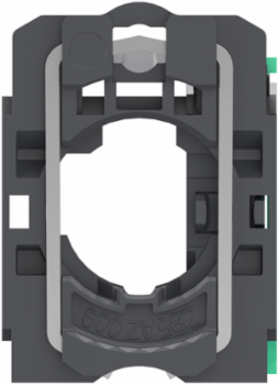

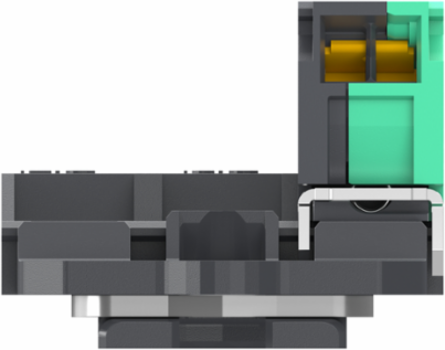

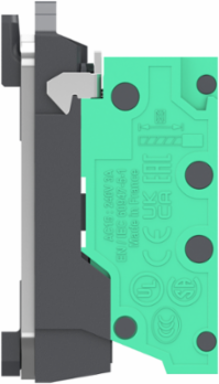

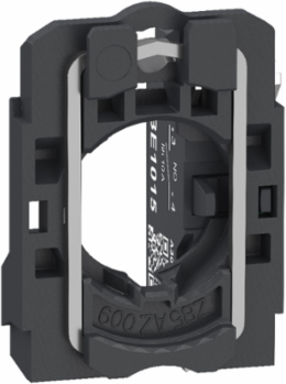

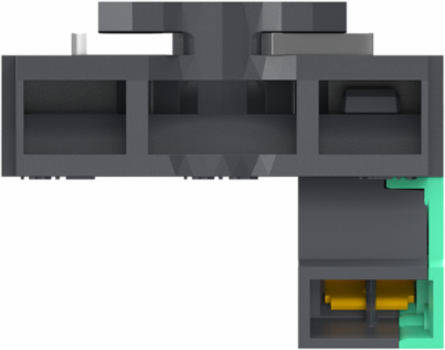

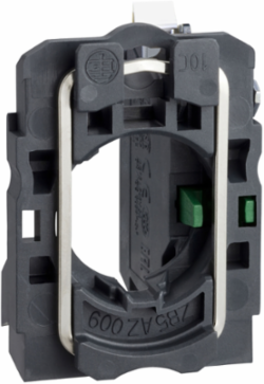

Schneider Electric ZB5AZ1015S61 Single contact block with body fixing collar, Harmony XB5, plastic, 1 NO, compact push in terminals, pack of 100
- MPN: ZB5AZ1015S61
- PPN: SCH-ZB5AZ1015S61
CAD
$25.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally open (NO) contact. It is compatible with Harmony XB5 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This plastic product weighs 17g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications This contact block, with body and fixing collar, is sold by 100. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
