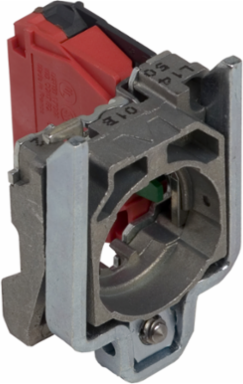

Schneider Electric ZB4BZ1016 Harmony XB4 Complete Body/Contact Assembly, 1 NO, 47 mm Height

MPN: ZB4BZ1016
PPN: SCH-ZB4BZ1016

$33.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric Harmony XB4 Complete Body/Contact Assembly is designed to enhance the efficiency and reliability of automation and control applications. Featuring a robust configuration with one normally open (NO) contact, this assembly stands 47 mm tall, making it a compact solution for various pilot device setups. This product embodies Schneider Electric's commitment to quality, ensuring that it meets the demands of modern industrial environments where durability and performance are paramount. Ideal for integration in control panels, this complete body/contact assembly provides dependable operation, making it a valuable addition to your automation toolkit.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Physical Attributes

Cad Overall Depth	37 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm

Important Information Attributes

Contacts Usage	standard contacts, standard contacts
Device Composition	fixing collar, contact block, fixing collar
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Certificate Agency	BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Carbon Footprint Of The Distribution Phase [A4]	0.006930866, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0106301779, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.026093662
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Average Percentage Of Recycled Metal Content	16 %
Compatibility Code	ZB4
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Fixing Collar Material	zamak
Mechanical Durability	5000000 cycles
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminals	screw clamp terminals
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
Short-circuit Protection	4 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	53.0 g
Warranty (In Months)	18

Customizable	0, no
Electrical Durability	1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Contacts Composition	1 NO
Terminals Description Iso N°1	(11-12)NO, (11-12)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0670390273
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3756650059
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	23 %
Contact Block Type	single
Contacts Material	gold flashed (Ag/Ni/Au) contacts
Device Short Name	ZB4
Head Type	standard
Operating Torque	0.05 N.m NO changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2308035_V1-EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
[Ie] Rated Operational Current	3 A 240 V, AC-15, A300 IEC 60947-5-16 A 120 V, AC-15, A300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	16 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4863587391
Environmental Disclosure	ENVPEP2308035_V1-EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
