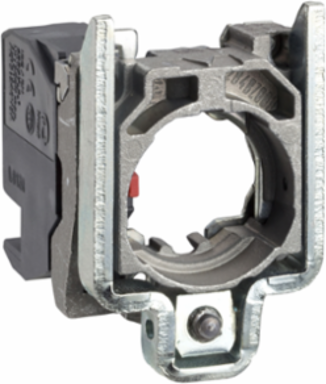

Schneider Electric ZB4BZ1024 Harmony XB4 Complete Body/Contact Assembly, 1 NC, 30 mm Width, 47 mm Height
- MPN: ZB4BZ1024
- PPN: SCH-ZB4BZ1024
CAD
$28.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 complete body and contact assembly from Schneider Electric is designed to meet the demands of automation and control applications. Featuring a normally closed (NC) contact configuration, it ensures reliable performance in various operational environments. With a compact width of 30 mm and a height of 47 mm, this assembly is suitable for installation in tight spaces while maintaining functionality and efficiency. Its robust design makes it an essential component for reliable pilot devices and control systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico |
|---|
Physical Attributes
| Cad Overall Depth | 37 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 47 mm |
|---|
Important Information Attributes
| Customizable | 0, no |
|---|---|
| Electrical Durability | 10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Certificate Agency | BV, UL, CSA, DNV, LROS (Lloyds register of shipping) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0065385528, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0100284698, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.026093662 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Average Percentage Of Recycled Metal Content | 16 % |
| Compatibility Code | ZB4 |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NC |
| Device Short Name | ZB4 |
| Head Type | standard |
| Operating Force | 2 N NC changing electrical state |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | complete body/contact assembly |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.5 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Short-circuit Protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 50.000 g |
| Warranty (In Months) | 18 |
| Device Composition | body, fixing collar |
|---|---|
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Terminals Description Iso N°1 | (11-12)NC, (11-12)NC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0632443654 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.354400949 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 23 % |
| Contact Block Type | single |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | zamak |
| Mechanical Durability | 5000000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)4.3 mm total travel) |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TH |
| Returnability | Yes |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2308035_V1-EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 IEC 60947-5-16 A 120 V, AC-15, A300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Connections - Terminals | plug-in connector |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 16 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.4603059989 |
| Environmental Disclosure | ENVPEP2308035_V1-EN |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308035_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | complete body/contact assembly |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
