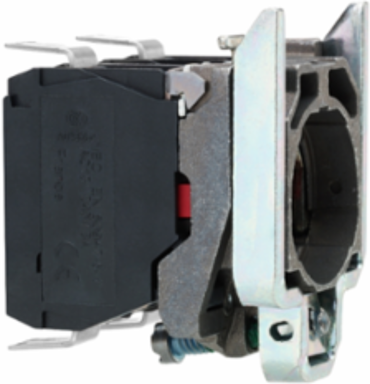

Schneider Electric ZB4BZ1033 Harmony Push Button Body Assembly with 2 NO Contacts, IP20, 47 mm Height

MPN: ZB4BZ1033
PPN: SCH-ZB4BZ1033
UNSPSC: 39122221

$33.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony push button body assembly from Schneider Electric is designed to enhance operational efficiency within automation and control systems. Featuring two normally open contacts and a compact height of 47 mm, this assembly is ideal for applications requiring reliable signaling and control. Its IP20 rating ensures protection against solid objects, making it a suitable choice for indoor use where exposure to dust might be a concern. Engineered for durability and versatility, this component is an essential addition for professionals looking to optimize their pilot device systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	62 g

Physical Attributes

Cad Overall Depth	37 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm

Complementary Attributes

Ui Rated Insulation Voltage	250 V 3)EN 60947-1

Important Information Attributes

Contacts Usage	standard contacts, standard contacts
Device Composition	body, fixing collar, body
Connections Terminals	Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
Certificate Agency	LROS (Lloyds register of shipping), DNV, GL, BV, CSA, UL
Carbon Footprint Of The Distribution Phase A4	0.0081078055, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0124353025, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.0521873239
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Average Percentage Of Recycled Metal Content	16 %
Compatibility Code	ZB4
Contact Operation	slow-break
Contacts Type And Composition	2 NO
Electrical Durability	10000000 cycles
Head Type	standard
Operating Torque	0.05 N.m NO changing electrical state
Positive Opening	without
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Customizable	0, no
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Contacts Composition	2 NO
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.078423013
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.4394571767
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	23 %
Contact Block Type	single
Contacts Material	silver alloy (Ag/Ni)
Device Short Name	ZB4
Fixing Collar Material	zamak
Mechanical Durability	5000000 cycles
Operating Travel	2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminals	Faston connector
Data Source	extrapolated product
Customs Code	8536509035
Functional Unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	16 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.5906106217
Environmental Disclosure	ENVPEP2308035_V1-EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308035_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
