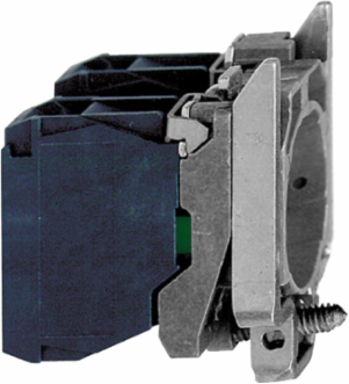

Schneider Electric ZB4BZ1053 Harmony XB4 Single Contact Block Assembly 1NO+1NC IP20 47mm Height
- MPN: ZB4BZ1053
- PPN: SCH-ZB4BZ1053
CAD
$33.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XB4 single contact block assembly from Schneider Electric is engineered for effective automation and control applications, featuring a versatile 1NO+1NC configuration. With a height of 47mm and an IP20 rating, this contact block is designed to withstand a range of industrial environments while maintaining reliable performance. Its robust construction and thoughtful design make it an essential component for enhancing the functionality of various pilot devices, ensuring seamless integration into existing systems for precise control and operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Important Information Attributes
- Contacts Usage
- standard contacts, standard contacts
- Device Composition
- fixing collar, body, fixing collar
- Contacts Composition
- 1 NO + 1 NC
- Connections - Terminals
- Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0083693476, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0128364413, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.0521873239
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 16 %
- Compatibility Code
- ZB4
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Electrical Durability
- 10000000 cycles
- Head Type
- standard
- Operating Torque
- 0.05 N.m NO changing electrical state
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete body/contact assembly
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.6 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2308035_V1-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Package Weight(Lbs)
- 64 g
- Warranty (In Months)
- 18
Customizable0, no
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Certificate AgencyLROS (Lloyds register of shipping), DNV, CSA, BV, UL
Terminals Description Iso N°1(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0809527877
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.4536332147
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content23 %
Contact Block Typesingle
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameZB4
Fixing Collar Materialzamak
Mechanical Durability5000000 cycles
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections TerminalsFaston connector
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 16 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.6079791152
- Environmental Disclosure
- ENVPEP2308035_V1-EN
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308035EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308035_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
