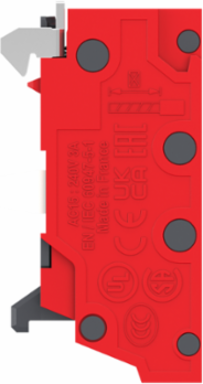

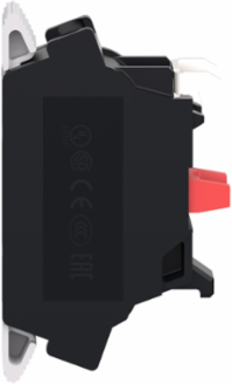

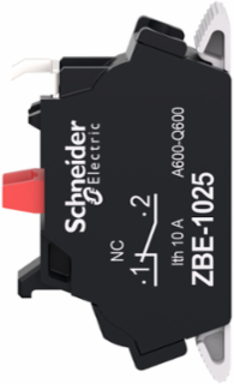

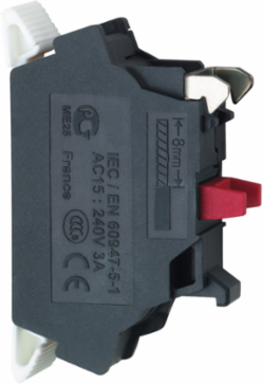

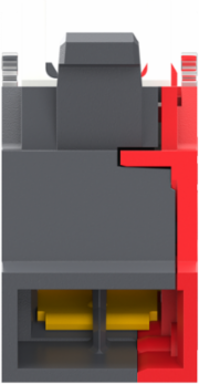

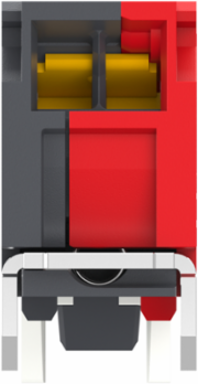

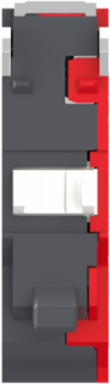

Schneider Electric ZBE1025 Harmony XB4 Single Contact Block 1NC, Spring Clamp Terminals, IP20

  • MPN: ZBE1025
  • PPN: SCH-ZBE1025
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $18.80

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

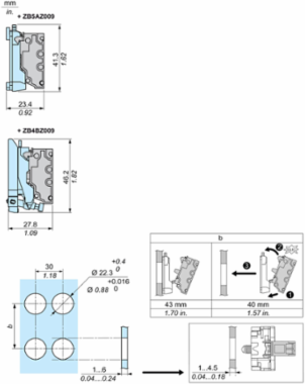

    Spec sheet

    Description

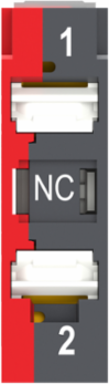

    This Harmony XB4 and Harmony XB5 single contact block uses push-in terminal connections. It features 1 normally closed (NC) contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. Compact, it is easily installed and replaced on XB4 or XB5 push-button units and selector switches via a clip assembly and connects to control circuits with push-in terminal connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NC contact block types. Vibration resistant push-in connection terminals ensure high vibration resistance making product suitable installation on high impact machine. This contact block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
