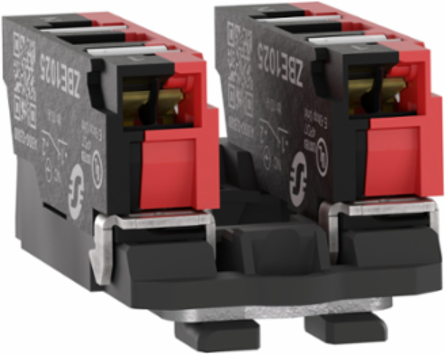

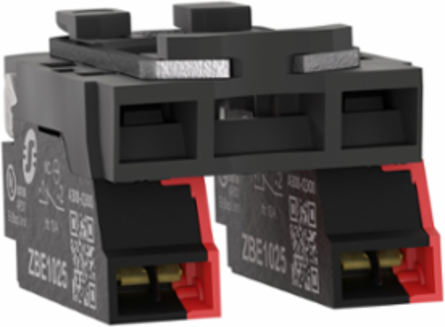

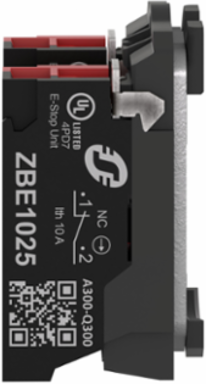

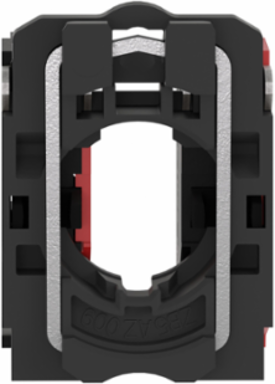

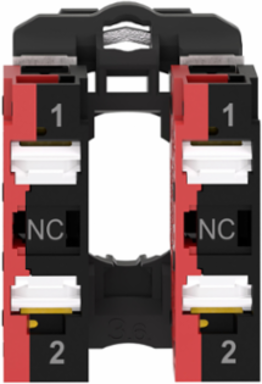

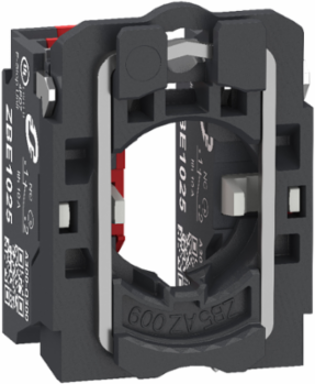

Schneider Electric ZB5AZ1045 Harmony XB5 Complete Body Contact Assembly, Single NC, 32 mm Depth, IP20
- MPN: ZB5AZ1045
- PPN: SCH-ZB5AZ1045
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XB5 Complete Body Contact Assembly by Schneider Electric is engineered for seamless integration in automation and control applications. This model features a single normally closed (NC) contact, ensuring reliable interruption of circuits when needed. With a compact depth of 32 mm and an Ingress Protection rating of IP20, it is designed to offer maximum functionality while maintaining safety in a variety of industrial environments. Its robust construction and compatibility with various pilot devices make it a go-to choice for professionals seeking dependable performance in their control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

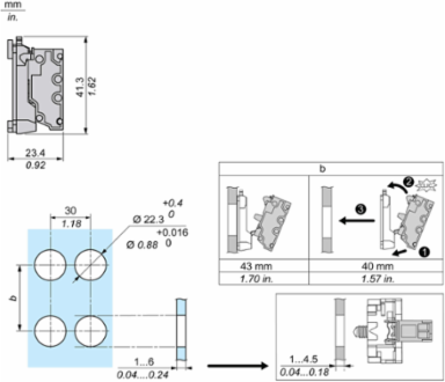

Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 46.2 mm
Cad Overall Height27.6 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Operation
- slow-break, slow-break
- Device Composition
- body, fixing collar
- Contacts Composition
- 2 NC
- Terminals Description Iso N°1
- (11-12)NC, (11-12)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.038373942860167966
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.15735194721341966
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 24 %
- Contact Block Type
- single
- Contacts Type And Composition
- 2 NC
- Device Short Name
- ZB5
- Head Type
- standard
- Operating Force
- 4.5 N NC changing electrical state
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete body/contact assembly
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Connections Terminals 8 Connections Terminals
- push-in
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; APAC
- [Ie] Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 V 3)IEC 60947-1

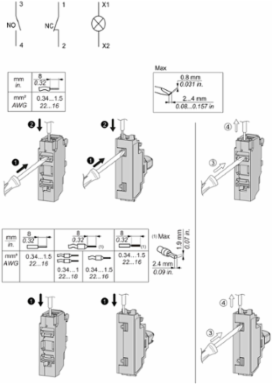

- Connections - Terminals
- push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The Distribution Phase [A4]0.007413259083391998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.005597534426882791, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.03592690140845071
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content12 %
Compatibility CodeZB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Mechanical Durability10000000 cycles
Operating Travel1.217 mm NC changing electrical state)4.3 mm total travel)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2303008_V2
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)29.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 12 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2446635849923131
- Environmental Disclosure
- ENVPEP2303008_V2
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303008_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
