Schneider Electric ZB5AZ1055 Harmony XB5 Complete Body Contact Assembly, 30 mm Depth, 1 NO + 1 NC

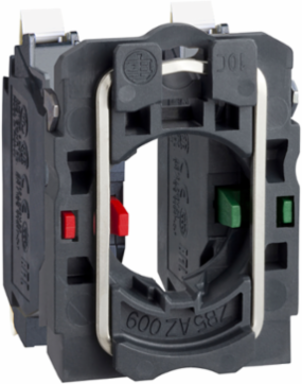

Harmony XB5 Complete Body Contact Assembly, 30 mm Depth, 1 NO + 1 NC
  • MPN: ZB5AZ1055
  • PPN: SCH-ZB5AZ1055

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$39.63/ EA

Description

The Harmony XB5 Complete Body Contact Assembly by Schneider Electric is designed for high reliability in automation and control applications. With its compact 30 mm depth and combination of one normally open (NO) and one normally closed (NC) contact, this contact block facilitates versatile functionality within control circuits. Ideal for various pilot device configurations, it ensures seamless integration, making it a crucial component in enhancing operational efficiency across diverse industrial environments.

Specifications

Contact Configuration
1 NO + 1 NC
Mechanical Durability
10,000,000 cycles
Vibration Resistance
5 gn (2 to 500 Hz) IEC 60068-2-6
Ambient Temperature (Storage)
-40 to 70 °C
CAD Overall Height
27.6 mm
Net Weight
0.021 kg
Contact Material
Silver alloy (Ag/Ni)
Terminal Type
Spring clamp terminals
Product Type
Complete body contact assembly
Certifications
UL, GL, LROS, DNV, BV, CSA
Mercury Free
Yes
Reach Free Of SVHC
Yes
Contact OperationSlow-break
Shock Resistance30 gn (18 ms) and 50 gn (11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Temperature (Operation)-40 to 70 °C
CAD Overall Width46.2 mm
CAD Overall Depth30 mm
Fixing Collar MaterialPlastic
Protective TreatmentTH
Head TypeStandard
Standards ComplianceIEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, UL 508, JIS C8201-1
IP Degree of ProtectionIP20 IEC 60529
Toxic Heavy Metal FreeYes
Country of OriginFrance
