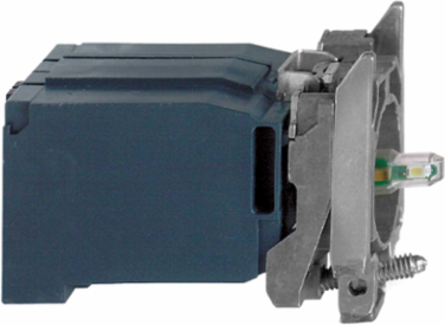

Schneider Electric ZB4BV5D3 Harmony XB4 Green Light Block Assembly, 400V AC, IP20, LED Bulb
- MPN: ZB4BV5D3
- PPN: SCH-ZB4BV5D3
CAD
$144.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4 light block assembly from Schneider Electric is designed to enhance operational visibility and safety in automation and control environments. It operates effectively at 400V AC and features an IP20 rating, ensuring reliable performance in a variety of applications. Equipped with an LED bulb, this green light block not only delivers bright illumination but also offers energy efficiency and longevity. Ideal for control panels and industrial settings, it serves as an essential component for pilot devices, providing clear, visual feedback within your systems.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 400 V AC 50/60 Hz
- Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Vibration Resistance
- 5 gn (2-500 Hz) IEC 60068-2-6
- Light Source
- LED
- Electrical Shock Protection Class
- Class I IEC 60536
- Ambient Air Temperature For Storage
- -40-70 °C
- Dimensions
- 30 mm x 47 mm x 60 mm (W x H x D)
- Bulb Base
- BA 9s
- Shape of Screw Head
- Cross Philips no 1
- Net Weight
- 0.134 kg
- Standards
- IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60947-1, CSA C22.2 No 14, JIS C8201-1
- Range
- Harmony XB4
- Circularity Profile
- ENVEOLI1808008EN
- Weee
- EU market waste collection compliant
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Protective Treatment
- TH
Insulation Voltage600 V IEC 60947-1
Light Block SupplyIntegral transformer 1.2 VA 6 V
Shock Resistance30 gn 18 ms half sine wave acceleration IEC 60068-2-27
Light Source ColourGreen
Ambient Air Temperature For Operation-40-70 °C
Electrical Shock Protection ClassClass I IEC 60536
Tightening Torque0.8-1.2 N.m IEC 60947-1
Connections - TerminalsScrew clamp terminals, ≤ 2 x 1.5 mm² with cable end
MountingFront mounting
Fixing Collar MaterialZamak
Product TypeComplete body/light block assembly
Environmental DisclosureENVPEP1808008EN
Electrical Composition CodeP4
Eu Rohs DirectivePro-active compliance (out of EU RoHS scope)
Sustainable Offer StatusGreen Premium product
Reach RegulationContains Substances of Very High Concern above threshold
Product CertificationsBV, UL listed, LROS, CSA, GL, DNV
