Schneider Electric ZB6ZB11B Harmony XB6 Illuminated Push Button 12-24V 1NO White LED 16mm
Schneider Electric ZB6ZB11B Harmony XB6 Illuminated Push Button 12-24V 1NO White LED 16mm
- MPN: ZB6ZB11B
- PPN: SCH-ZB6ZB11B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$36.22/ EA
Description

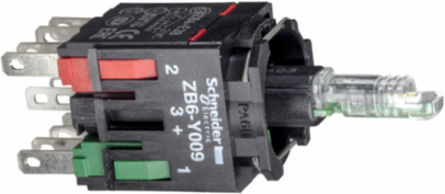

This Harmony ZB6ZB11B is a white light block with body/fixing collar with integral LED 12V to 24V, 1 NO. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Specifications
Environment
- Product Certifications
- CSA || CCC || UL || GOST
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-5 || UL 508 || JIS C 852
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTC
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Complementary
- Contacts Usage
- standard
- Short-Circuit Protection
- 6 A cartridge fuse gG EN/IEC 60947-5-1
- Operating Travel
- 2 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Current Consumption
- 15 mA
- Surge Withstand
- 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
- Signalling Type
- steady
- Supply Voltage Limits
- 6-30 V AC/DC
- Cad Overall Width
- 24 mm
Terminals Description Iso N°1(13-14)NO
Operating Force1.6 N NO changing electrical state
Contacts Materialsilver alloy (Ag/Ni)
Net Weight0.006 kg
Cad Overall Height18 mm
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
Cad Overall Depth51 mm
Specifications
- Range Of Product
- Harmony XB6
- Product Or Component Type
- complete body for illuminated push-button
- Connections - Terminals
- Faston connector 2.8 x 0.5 mm
- Sale Per Indivisible Quantity
- 1
- Light Source Colour
- white
- [Us] Rated Supply Voltage
- 12...24 V AC/DC
Light SourceLED
Fixing Collar Materialplastic
Contacts Type And Composition1 NO
Contact Operationslow-break
Device Short NameZB6
Bulb Baseintegral LED
