Complete Control Station with 1 Selector Switch 22 mm, Dark Grey, IP66
Schneider Electric

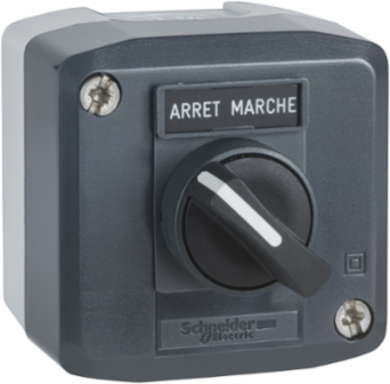

Schneider Electric XALD134H7 Complete Control Station with 1 Selector Switch 22 mm, Dark Grey, IP66

  • MPN: XALD134H7
  • PPN: SCH-XALD134H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $82.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This control station from Schneider Electric is engineered for durability and reliability in demanding environments. Featuring a robust design with a dark grey finish, it offers an IP66 rating, ensuring protection from dust and moisture. The inclusion of a 22 mm selector switch adds versatility, making it suitable for a variety of industrial applications. With its complete setup, this control station not only enhances operational efficiency but also stands up to the rigors of industrial use, providing an effective solution for controlling machinery and equipment.

    Documentation & Downloads

    Specifications

    Key Specifications

    Control Station Application
    Start-Stop function
    Colour Of Cover
    dark grey RAL 7016)
    Colour Of Base Of Enclosure
    light grey RAL 7035)
    Contact Operation
    slow-break
    Product Or Component Type
    complete control station
    Marking Location
    marking on legend holder
    Operator Profile
    1 selector switch with handle
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Range Of ProductHarmony XALD
    Control Station Composition1 selector switch with standard handle 1 NO O-I
    Operators Descriptionstandard handle ''O-I'' 1 NO
    Materialpolycarbonate
    Device Short NameXALD

    Complementary

    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    [Ie] Rated Operational Current
    6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    Contacts Material
    silver alloy (Ag/Ni)
    Mechanical Durability
    1000000 cycles
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    Torque Value
    0.14 N.m NO changing electrical state
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Shape Of Screw Head
    cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Operating Travel4.3 mm total travel)
    Operator Position Information2 positions
    Positive Openingwithout
    Cable Entry2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    Net Weight0.163 kg
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1806010EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1806010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Environment

    Product Certifications
    UL listed || CSA
    Ambient Air Temperature For Operation
    -40-70 °C
    Overvoltage Category
    class II IEC 60536
    Nema Degree Of Protection
    NEMA 13 || NEMA 4X
    Vibration Resistance
    5 gn 12-500 Hz)IEC 60068-2-6
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Ik Degree Of ProtectionIK05 conforming to IEC 62262
    Ambient Air Temperature For Storage-40-70 °C
    StandardsIEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Protective TreatmentTH
