Schneider Electric XALD114 Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton,22mm,spring return, 1NC, marked STOP

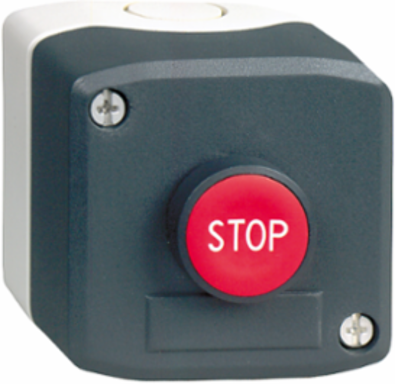

Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton,22mm,spring return, 1NC, marked STOP
  • MPN: XALD114
  • PPN: SCH-XALD114

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$65.60/ EA

Description

This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Specifications

Environment

Ik Degree Of Protection
IK03 conforming to IEC 62262
Standards
IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-1
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1806010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1806010EN

Complementary

Operating Force
3.5 N NC changing electrical state
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Positive Opening
with IEC 60947-5-1 appendix K
Cable Entry
1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Net Weight
0.165 kg
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Mechanical Durability10000000 cycles
Tightening Torque0.8-1.2 N.m IEC 60947-1

Key Specifications

Control Station Application
stop function
Range Of Product
Harmony XALD
Control Station Composition
1 flush push-button, red 1 NC STOP
Product Or Component Type
complete control station
Marking Location
marking on push-button
Colour Of Cover
dark grey RAL 7016)
Device Short Name
XALD
Product Destinationfor XB5 Ø 22 mm control and signalling units
Colour Of Base Of Enclosurelight grey RAL 7035)
Operators Descriptionred ''STOP'' 1 NC
Materialpolycarbonate
Operator Profile1 flush push-button
Contact Operationslow-break

Downloads

Similar Products

Control station, Harmony, plastic, dark grey, 2 flush push buttons, green NO, red NC, 22mm, spring return, marking on legend holder, UL CSA certified

Schneider Electric XALD211H29H7 Control station, Harmony, plastic, dark grey, 2 flush push buttons, green NO, red NC, 22mm, spring return, marking on legend holder, UL CSA certified

MPN

XALD211H29H7

Available to Order

Company Stock:

0

CAD$109.34/EA
Control station, Harmony, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release 1 NC, unmarked, UL CSA certified

Schneider Electric XALK178H7 Control station, Harmony, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release 1 NC, unmarked, UL CSA certified

MPN

XALK178H7

Available to Order

Company Stock:

0

CAD$143.51/EA
Control station, Harmony XALD, XALK, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop push pull 1 NC, unmarked, UL CSA certified

Schneider Electric XALK198H7 Control station, Harmony XALD, XALK, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop push pull 1 NC, unmarked, UL CSA certified

MPN

XALK198H7

Available to Order

Company Stock:

0

CAD$99.09/EA
Complete control station, Harmony 9001B, 2 push buttons START/STOP, 5A, 600V AC, 1NO + 1NC, NEMA 1

Square D 9001BG201 Complete control station, Harmony 9001B, 2 push buttons START/STOP, 5A, 600V AC, 1NO + 1NC, NEMA 1

MPN

9001BG201

Available to Order

Company Stock:

0

CAD$102.69/EA
Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4

Square D 9001BW241 Complete control station, Harmony 9001B, 2 push buttons START-STOP, 5A, 600V AC,1NO + 1NC, NEMA 4

MPN

9001BW241

Available to Order

Company Stock:

0

CAD$325.34/EA
Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC

Schneider Electric XALD112 Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC

MPN

XALD112

Available to Order

Company Stock:

0

CAD$65.60/EA
Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO + 1NC, marked O

Schneider Electric XALD112E Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO + 1NC, marked O

MPN

XALD112E

Available to Order

Company Stock:

0

CAD$82.00/EA
Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green START 1NO red STOP 1NC, spring return

Schneider Electric XALD215H7 Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green START 1NO red STOP 1NC, spring return

MPN

XALD215H7

Available to Order

Company Stock:

0

CAD$117.54/EA
Complete control station, Harmony XALD, XALK, dark grey, 1 green flush push button 22mm spring return 1 NO Start

Schneider Electric XALD101H29 Complete control station, Harmony XALD, XALK, dark grey, 1 green flush push button 22mm spring return 1 NO Start

MPN

XALD101H29

Available to Order

Company Stock:

0

CAD$65.60/EA
Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green MARCHE 1NO red ARRET 1NC, spring return

Schneider Electric XALD211H7 Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, green MARCHE 1NO red ARRET 1NC, spring return

MPN

XALD211H7

Available to Order

Company Stock:

0

CAD$109.34/EA
Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, white up arrow 1NO red STOP 1NC black down arrow 1NO

Schneider Electric XALD326H7 Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, white up arrow 1NO red STOP 1NC black down arrow 1NO

MPN

XALD326H7

Available to Order

Company Stock:

0

CAD$159.91/EA
Complete control station, Harmony XALD, dark grey, 1 green flush pushbutton, 22mm,spring return, 1NO, marked MARCHE

Schneider Electric XALD104 Complete control station, Harmony XALD, dark grey, 1 green flush pushbutton, 22mm,spring return, 1NO, marked MARCHE

MPN

XALD104

Available to Order

Company Stock:

0

CAD$65.60/EA
