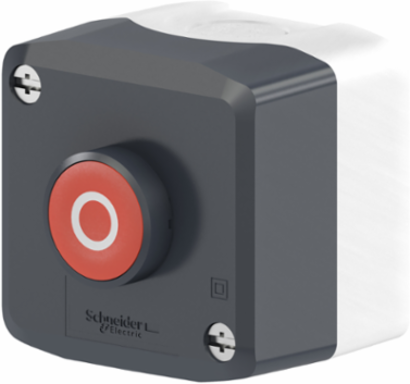

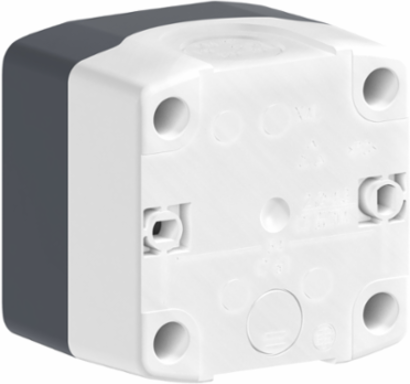

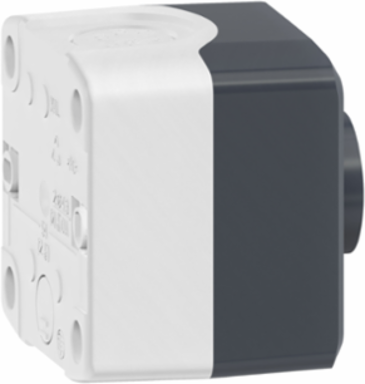

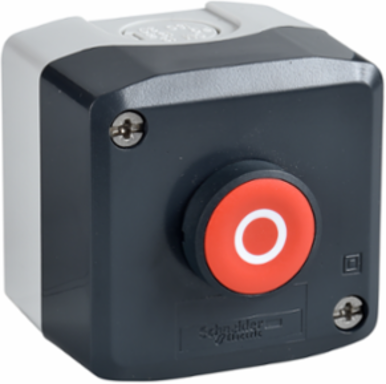

Schneider Electric XALD112 Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC

Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC
Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC
Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC
Control station, Harmony XALD, XALK, plastic, dark grey lid, 1 red flush push button 22mm, spring return, marked O, 1NC
  • MPN: XALD112
  • PPN: SCH-XALD112

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$65.60/ EA

Description

This Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.

Specifications

Environment

Ik Degree Of Protection
IK03 conforming to IEC 62262
Standards
IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1806010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1806010EN

Complementary

Operating Force
3.5 N NC changing electrical state
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Positive Opening
with IEC 60947-5-1 appendix K
Cable Entry
1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Net Weight
0.156 kg
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Mechanical Durability10000000 cycles
Tightening Torque0.8-1.2 N.m IEC 60947-1

Key Specifications

Control Station Application
stop function
Range Of Product
Harmony XALD
Control Station Composition
1 flush push-button, red 1 NC O
Product Or Component Type
complete control station
Marking Location
marking on push-button
Colour Of Cover
dark grey RAL 7016)
Device Short Name
XALD
Product Destinationfor XB5 Ø 22 mm control and signalling units
Colour Of Base Of Enclosurelight grey RAL 7035)
Operators Descriptionred ''O'' 1 NC
Materialpolycarbonate
