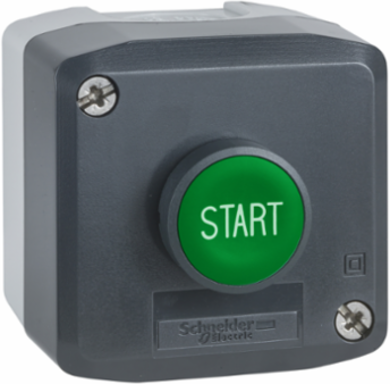

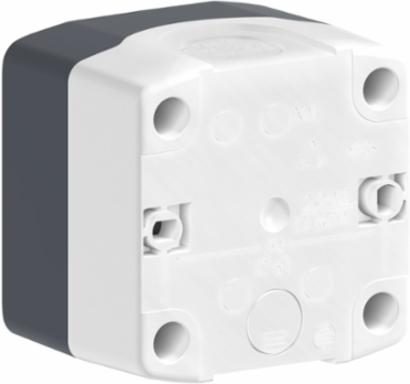

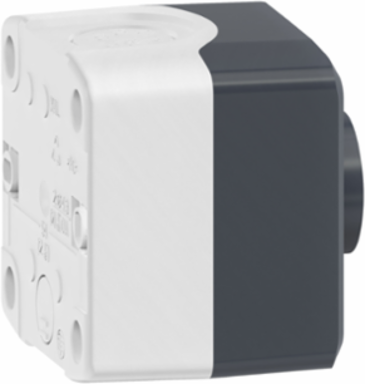

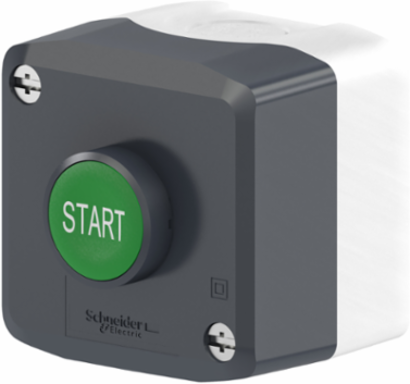

Schneider Electric XALD103 Harmony Control Station with Green Push Button, IP66/IP67/IP69 Protection
Schneider Electric XALD103 Harmony Control Station with Green Push Button, IP66/IP67/IP69 Protection
- MPN: XALD103
- PPN: SCH-XALD103
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$65.60/ EA
Description
This Harmony XALD dark grey control station is ideal to control start operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.
Specifications
Environment
- Ik Degree Of Protection
- IK03 conforming to EN 50102
- Standards
- EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1806010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1806010EN
Complementary
- Operating Force
- 3.8 N NO changing electrical state
- Operating Travel
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening
- without
- Cable Entry
- 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Net Weight
- 0.156 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- [Ie] Rated Operational Current
- 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Mechanical Durability10000000 cycles
Tightening Torque0.8-1.2 N.m EN/IEC 60947-1
Specifications
- Control Station Application
- start function
- Range Of Product
- Harmony XALD
- Control Station Composition
- 1 flush push-button, green 1 NO START
- Product Or Component Type
- complete control station
- Marking Location
- marking on push-button
- Colour Of Cover
- dark grey RAL 7016)
- Device Short Name
- XALD
Product Destinationfor XB5 Ø 22 mm control and signalling units
Colour Of Base Of Enclosurelight grey RAL 7035)
Operators Descriptiongreen ''START'' 1 NO
Materialpolycarbonate
Operator Profile1 flush push-button
Contact Operationslow-break
