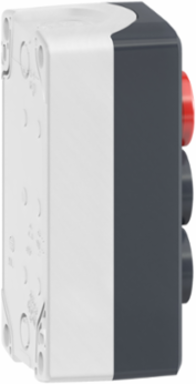

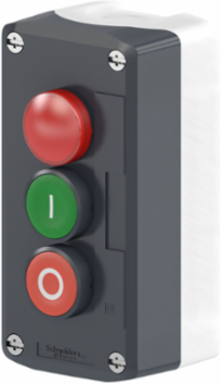

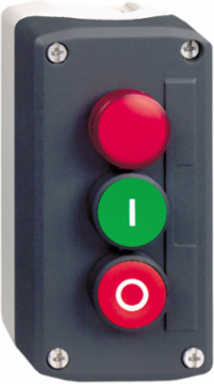

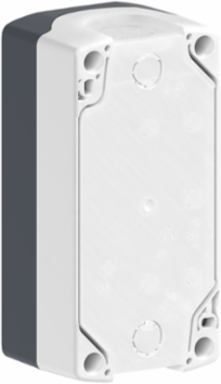

Schneider Electric XALD363B Harmony Control Station, 1 Red Pilot Light, 1 Green Flush, IP66/IP67

  • MPN: XALD363B
  • PPN: SCH-XALD363B

CAD

$183.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony XALD dark grey control station is ideal to control simple ON/OFF processes. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.

Documentation & Downloads

Specifications

Key Specifications

Control Station Application
Start-Stop function
[Us] Rated Supply Voltage
24 V AC/DC
Colour Of Base Of Enclosure
light grey RAL 7035)
Light Source
integrated and protected LED
Product Or Component Type
complete control station
Marking Location
marking on push-button
Colour Of Cover
dark grey RAL 7016)
Light Source Colour
red
Product Destinationfor XB5 Ø 22 mm control and signalling units
Range Of ProductHarmony XALD
Control Station Composition1 flush push-button, green 1 NO I || 1 flush push-button, red 1 NC O || 1 pilot light
Operators Descriptiongreen ''I'' 1 NO - red ''O'' 1 NC
Materialpolycarbonate
Operator Profile2 flush push-buttons - 1 central pilot light
Contact Operationslow-break
Device Short NameXALD

Complementary

Operating Force
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Opening
with EN/IEC 60947-5-1 appendix K
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Net Weight
0.261 kg
Current Consumption
18 mA
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Service Life
100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Mechanical Durability
10000000 cycles
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Environment

Ik Degree Of Protection
IK05 conforming to EN 50102
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category
class II IEC 60536
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1806010EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1806010EN
