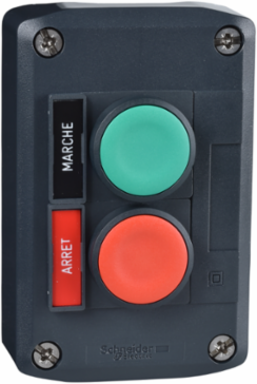

Schneider Electric XALACS2 Harmony Complete Control Station Dark Grey 22mm Pushbuttons IP66
- MPN: XALACS2
- UPC: 785901554912
- PPN: SCH-XALACS2
- UNSPSC: 39122227
CAD
$109.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents It is also resistant to chemicals and offers double insulation It is compatible with Harmony XB5 range pushbuttons, switches and pilot lights
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Ie Rated Operational Current | 6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Control Station Composition | 1 flush push-button, red 1 NC, 1 flush push-button, green 1 NO START-STOP |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4 |
| Certificate Agency | IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-5, JIS C8201-1 |
| Local Publishable Date | 2026-03-26 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2506022EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Entry | 2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Contact Operation | slow-break |
| Control Station Application | Start-Stop function |
| Device Short Name | XALD |
| Marking Location | marking on legend holder |
| Mechanical Durability | 5000000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel) |
| Operator Profile | 2 flush push-buttons |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | complete control station |
| Range Of Product | Harmony XALD |
| Returnability | No |
| Sustainable Packaging | No |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ac Control Voltage 60 Hz | 120-240 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Push Buttons | 2 |
| Color Of Cover | dark greydark grey RAL 7016) |
| Connections Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Customs Code | 8537109170 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | XALD |
| Contacts Material | silver alloy (Ag/Ni) |
| Dc Control Voltage | 125-250 V |
| Housing Material | plastic |
| Material | polycarbonate |
| Operating Force | 3.5 N NC changing electrical state3.8 N NO changing electrical state |
| Operator Position Information | 2 positions |
| Operators Description | green ''MARCHE'' 1 NO - red ''ARRET'' 1 NC |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Ac Control Voltage 50 Hz | 120-240 V |
| Number Of Command Positions | 2 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Base Of Enclosure | light grey RAL 7035) |
| Housing Color | grey |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Emergency Power Off Epo | no |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IEC 60529, IP66 |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506022EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | /13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2506022EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2506022EN |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony XALD |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
