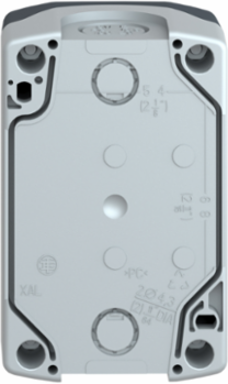

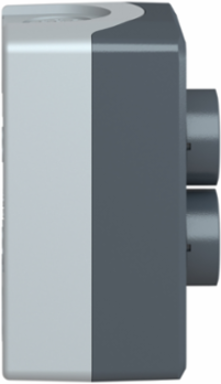

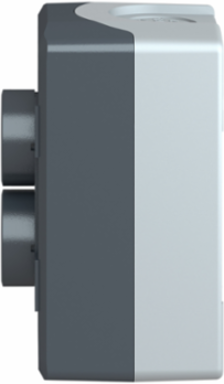

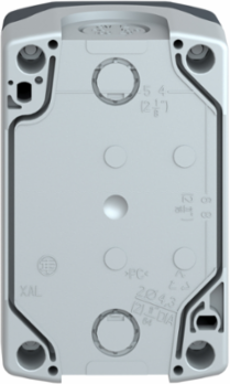

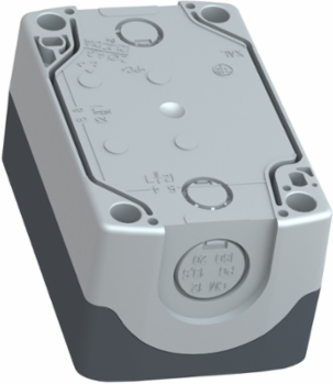

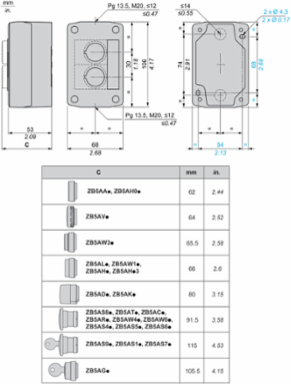

Schneider Electric XALD222H7 Harmony Control Station, Plastic, Dark Grey, 22mm, IP66/IP67/IP69K
- MPN: XALD222H7
- PPN: SCH-XALD222H7
CAD
$109.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This control station with 2 push-buttons for 2 functions enables machine builders to easily add required control and signalling functionality on their machines Its schematic is clearly distinguishable thanks to clear colors and markings It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments
Features
- Constructed from high-impact polycarbonate with a dark grey finish, this Harmony XALD control station is fully sealed against high-pressure water jets, dust, and corrosive chemicals. This industrial-grade durability makes it the ideal choice for food processing plants and outdoor marine environments where equipment must withstand rigorous cleaning and extreme weather without electrical failure.
- This station features a versatile two-button configuration, typically utilized for "Start/Stop" or "Up/Down" operations. By centralizing dual commands into a single enclosure, you reduce wiring complexity and save valuable surface area on your machinery or assembly line, allowing for more intuitive operator control and improved workflow efficiency.
- Built on Schneider Electric s world-class 22mm mounting platform, the internal XB5 units are fully modular and easy to replace or reconfigure. This ensures that as your system requirements evolve, you can quickly swap contact blocks or button styles without replacing the entire enclosure, significantly lowering your long-term maintenance costs and hardware waste.
- quipped with robust screw clamp terminals, this control station ensures high-vibration resistance and a gas-tight electrical connection for your control wires. This professional-grade fastening system prevents accidental wire pull-outs and intermittent signals, ensuring your industrial automation systems remain operational and safe under the heavy vibration of industrial manufacturing.
- The XALD222H7 is fully compliant with international standards including UL, CSA, CE, and RoHS, making it a "go-to" component for global machine builders. Using certified Schneider Electric hardware ensures your project meets all occupational safety requirements and simplifies the certification process for equipment being deployed across different regulatory regions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Color Of Marking
- black marking when white caps, white marking when green, red or black caps
- Color Of Cover
- dark greydark grey RAL 7016)
Color Of Base Of Enclosurelight grey RAL 7035)
Housing Colorgrey
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Station Composition

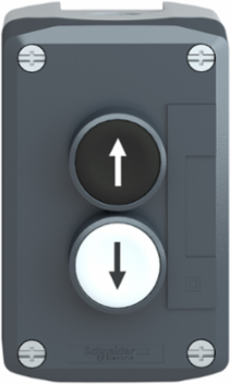

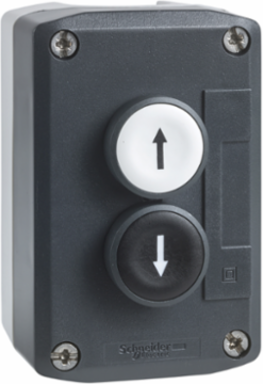

- 1 flush push-button, white 1 NO, black up arrow, 1 flush push-button, black 1 NO, white down arrow
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
- Color Of Marking
- black marking when white caps, white marking when green, red or black caps
- [Ie] Rated Operational Current
- 6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.4840669365321025
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.2307855224191027
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XALD
- Contacts Material
- silver alloy (Ag/Ni)
- Dc Control Voltage
- 125-600 V
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Marking Location
- marking on push-button
- Mechanical Durability
- 5000000 cycles
- Operating Travel
- 2.6 mm NO changing electrical state)4.3 mm total travel)
- Operators Description
- white ''up arrow'' 1 NO - black ''down arrow'' 1 NO
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALD
- Returnability
- Yes
- Software Version
- v6.3.0.1-4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
- Ac Control Voltage 50 Hz
- 120-600 V
- Number Of Command Positions
- 2
- Number Of Contacts As Normally Open Contact
- 2
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Housing Color
- grey
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 18
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
- Emergency Power Off (Epo)
- no
- Package Weight(Lbs)
- 234.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]0.16525580599146994, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0009740331773423409, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.00917078425119527
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506022EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard

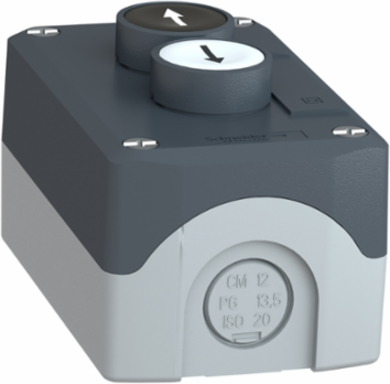

Cable Entry2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Contact Operationslow-break
Control Station Applicationtwo functions
Device Short NameXALD
Housing Materialplastic
Materialpolycarbonate
Operating Force3.8 N NO changing electrical state
Operator Profile2 flush push-buttons
Positive Openingwithout
Product Destinationfor XB5 Ø 22 mm control and signalling units
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ac Control Voltage 60 Hz120-600 V
Number Of Contacts As Normally Closed Contact2
Number Of Push Buttons2
Color Of Coverdark greydark grey RAL 7016)
Pep CodeENVPEP2506022EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.8902530823712125
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of Protection/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506022EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- complete control station
Range Of ProductHarmony XALD
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
