Schneider Electric XALACS1 Control Station with 1 NC Emergency Stop, IP66, NEMA 13, Yellow
- MPN: XALACS1
- UPC: 785901554394
- PPN: SCH-XALACS1
- UNSPSC: 39121565
CAD
$143.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

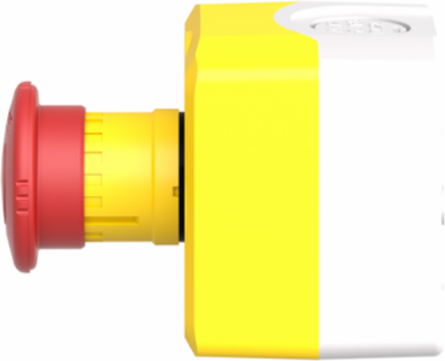

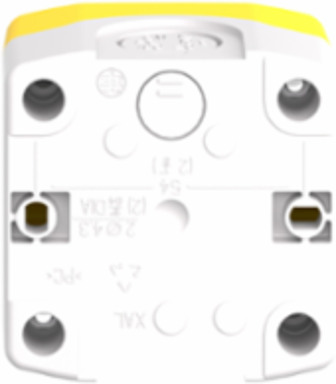

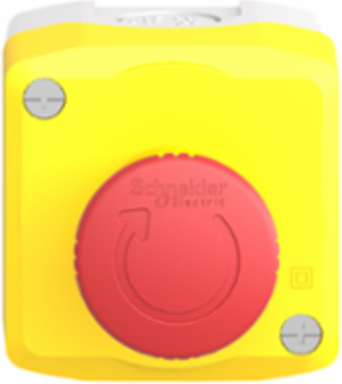

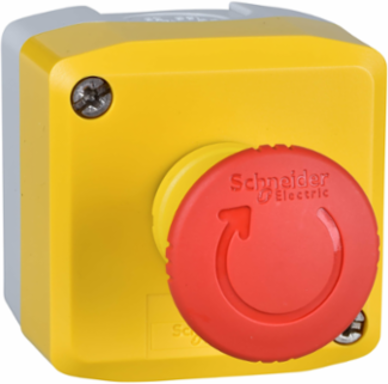

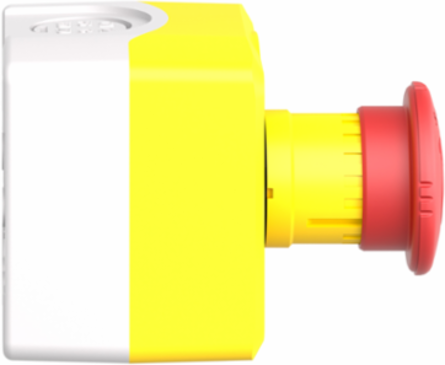

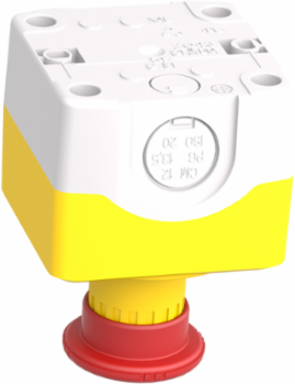

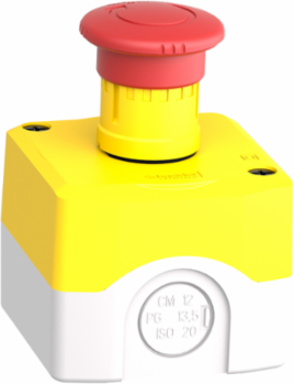

XAL control stations are suitable for most common functions. XALK control stations are complete stations for emergency stop functions. This control station has an enclosure with a light grey box and a yellow cover. Control Station has a trigger action emergency stop operator with a 40mm red mushroom button. Operator is a turn to release push button. The operator has one normally closed contact. Control Station is 2.68 inches tall, 2.68 inches wide and 4.53 inches deep. The relay weighs 0.43 lbs. This point of purchase product is packaged in a blister pack. Control station is UL Listed and CSA certified. "This product is certified by IEC, UL, CSA and CE." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
Features
- Low-load electrical contact
- Fully-assembled
- Double electrical insulation
- Wide range of operating temperature from -25°C to 70°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Application | emergency switching off function |
| Device Short Name | XALK |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | complete control station |
| Returnability | Yes |
| Ac Control Voltage 50 Hz | 120-600 V |
| Number Of Command Positions | 1 |
| Color Of Base Of Enclosure | light grey RAL 7035) |
| Housing Color | yellow |
| Customs Code | 8537109170 |
| Number Of Mushroom Shaped Push Buttons | 1 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-03-26 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2506022EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | XALK |
| Dc Control Voltage | 125-600 V |
| Housing Material | plastic |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Range Of Product | Harmony XALK |
| Sustainable Packaging | No |
| Ac Control Voltage 60 Hz | 120-600 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Color Of Cover | yellowyellow RAL 1021) |
| Nbr. Of Units In Pkg. | 1 |
| Emergency Power Off Epo | no |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506022EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2506022EN |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 13 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2506022EN |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony XALK |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
