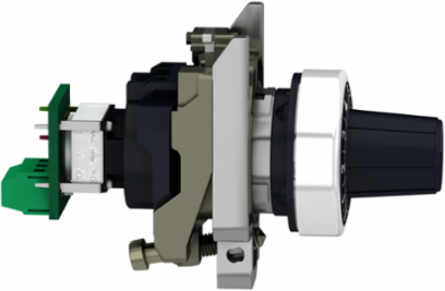

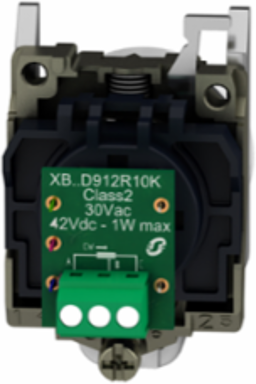

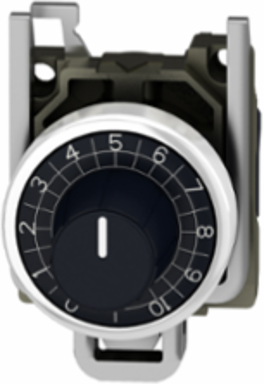

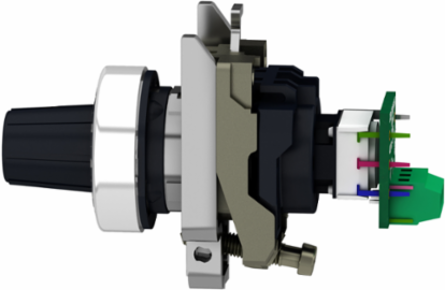

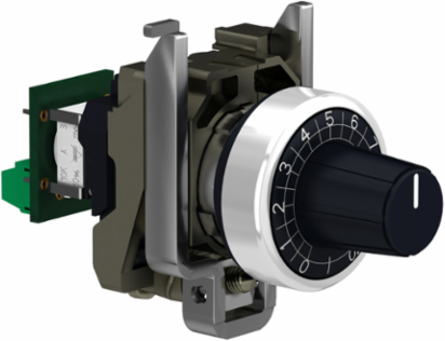

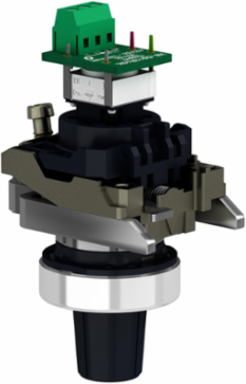

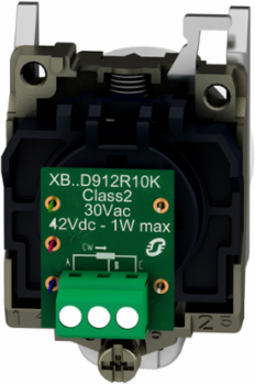

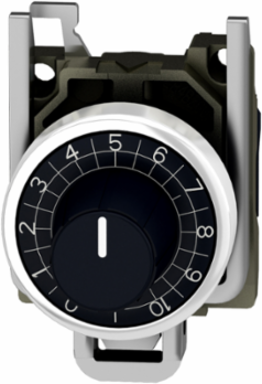

Schneider Electric XB4BD912R10K Harmony XB4 22mm Potentiometer 10K, IP66/IP69K, Cermet

MPN: XB4BD912R10K
PPN: SCH-XB4BD912R10K

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$70.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

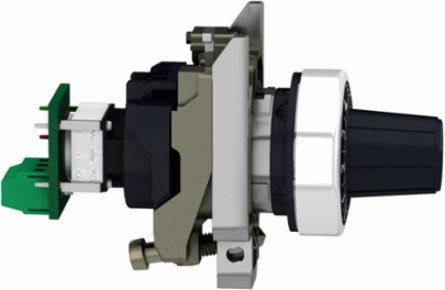

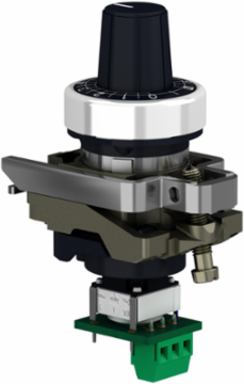

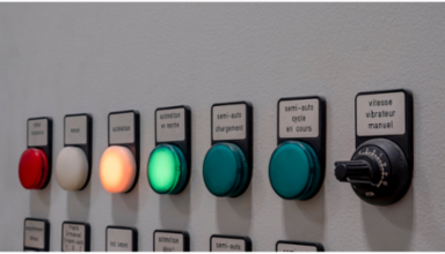

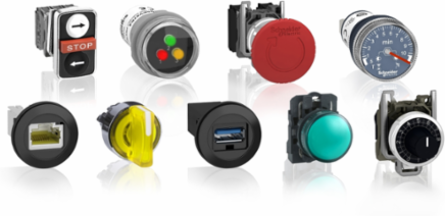

This Harmony XB4 potentiometer has a resistance of 10kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.

Features

Featuring a high-accuracy $10\text{ k}\Omega$ linear resistance profile, this cermet potentiometer delivers highly smooth variable control with a $\pm10\%$ internal conversion precision. It serves as an ideal external analog interface for managing motor speeds, conveyor pacing, and parameter adjustments via the voltage or resistor inputs on standard industrial VFDs and inverters.
Built on the rugged Harmony XB4 platform, this complete assembly features a robust, chromium-plated metal bezel and mounting base designed to withstand aggressive mechanical shocks up to 50 gn. This ultra-durable metallic construction resists accidental tool impacts and repetitive operator force, avoiding the cracking and mounting degradation common with all-plastic alternatives in heavy-duty machinery panels.
Engineered to achieve strict IP66, IP69, and IP69K ratings alongside NEMA 4X and NEMA 13 compliance, this unit features a fully sealed design that tolerates direct high-pressure water jets up to 7,000,000 Pa at 55 C. This exceptional environmental protection keeps your internal cermet tracks completely free from water ingress, airborne dust, and corrosive sanitation chemicals in food processing and outdoor marine applications.
Designed as a complete, pre-assembled package, the device drops seamlessly into standard 22.5 mm diameter enclosure holes without requiring special sizing tools or custom plates. The integrated mounting base securely grips the finished panel plate, providing immediate structural alignment and allowing automation electricians to execute rapid retrofits or system buildouts.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Sweden, United States

Physical Attributes

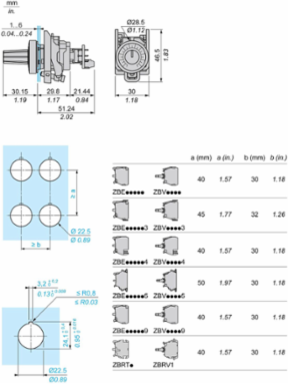

Cad Overall Depth	82 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm
Color Of Marking	white

Complementary Attributes

Rated Power In W	1 W 70 °C

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Certificate Agency	CSA, BV, UL Listed
Carbon Footprint Of The Distribution Phase [A4]	0.011476, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.022829, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.5 kg CO2 eq., 0.46984
Local Publishable Date	2026-03-26
Stocking Flag	N
Manufacturing Carbon Footprint	1.0221
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	19 %
Bezel Material	chromium plated metal
Device Short Name	XB4
Group Of Product	potentiometer knurled knob
Main Group	potentiometer
Mechanical Durability	50000 cycles
Ohmic Value	10000 Ohm
Potentiometer Characteristic	linear
Product Or Component Type	potentiometer
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Color Of Marking	white
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Potentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	86
Package Weight(Lbs)	105.000 g
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]	1.0181
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	36.5971
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	11.033
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]	-4.7142
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	5.4273
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	1.4167
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]	1.604
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]	0.1601
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	13.012
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	2.0211
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	11.033
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-4.7142
Customs Code	8533408070

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Precision Of Internal Conversion Resistor	+-10%, +-10%
[Us] Rated Supply Voltage	<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.20144
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.0221
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312041EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	49 %
Compatibility Code	XB4
Electrical Shock Protection Class	class II conforming to IEC 60536
Head Type	standard
Material	cermet
Mounting Diameter	22.5 mm
Operator Profile	knurled knob, with white)
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2312041EN
Pep Verification Date	2024-06-17
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]	1.0221
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	12.154
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	13.012
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	79.772
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-8.7763
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-3.8639
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	12.325
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	13.055
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-4.838
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	11.709
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	13.012
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	2.0211

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP69 IEC 60529, IP69K IEC 60529
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.7276850000000001
Environmental Disclosure	ENVPEP2312041EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Ø 6 mm shaft
Pep Code	ENVPEP2312041EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	19 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312041EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-17
Psr Version	PSR-0005-ed2-2016 03 29
