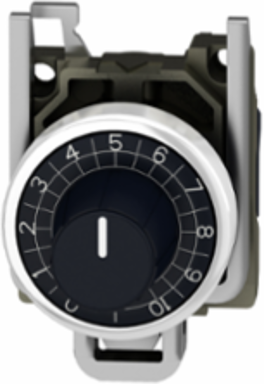

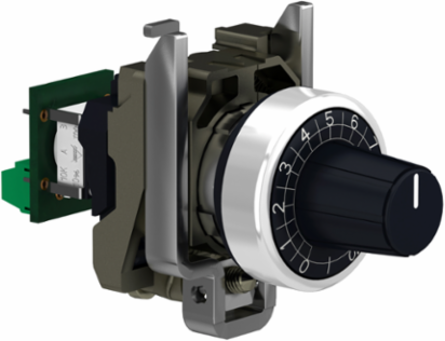

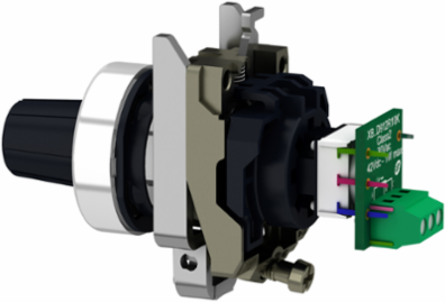

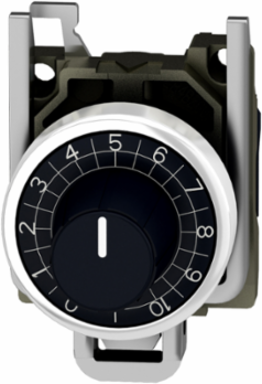

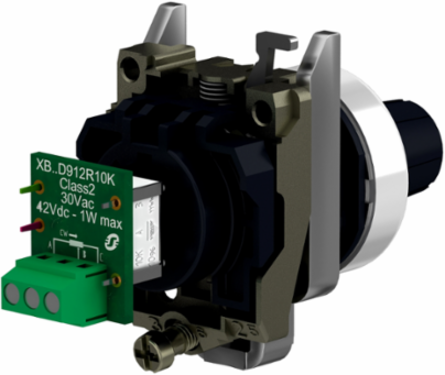

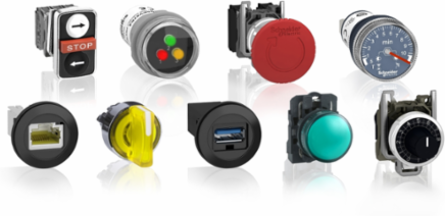

Schneider Electric XB4BD912R470K Harmony XB4 Metal Potentiometer 22mm 470k IP66/IP69K

MPN: XB4BD912R470K
PPN: SCH-XB4BD912R470K
UNSPSC: 39122246

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$70.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

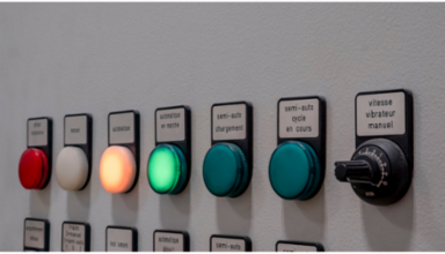

This Harmony XB4 potentiometer has a resistance of 470kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	87.76 g

Physical Attributes

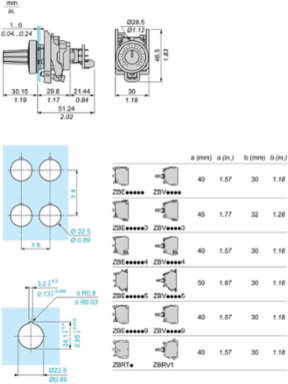

Cad Overall Depth	82 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm

Complementary Attributes

Us Rated Supply Voltage	<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC

Rated Power In W	0.26 W 70 °C

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Precision Of Internal Conversion Resistor	+-10%, +-10%
Carbon Footprint Of The Distribution Phase A4	0.011476, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.022829, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.5 kg CO2 eq., 0.46984
Local Publishable Date	2026-08-10
Manufacturing Carbon Footprint	1.0221
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	19 %
Bezel Material	chromium plated metal
Device Short Name	XB4
Group Of Product	potentiometer knurled knob
Main Group	potentiometer
Mechanical Durability	50000 cycles
Ohmic Value	470000 Ohm
Potentiometer Characteristic	linear
Product Or Component Type	potentiometer
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	Potentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, BV, UL Listed
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.20144
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.0221
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312041EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	49 %
Compatibility Code	XB4
Electrical Shock Protection Class	class II conforming to IEC 60536
Head Type	standard
Material	cermet
Mounting Diameter	22.5 mm
Operator Profile	knurled knob, with white)
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Color Of Marking	white
Data Source	extrapolated product
Customs Code	8533310000
Warranty In Months	18
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP69 IEC 60529, IP69K IEC 60529
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.7276850000000001
Environmental Disclosure	ENVPEP2312041_V1
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Ø 6 mm shaft
Pep Code	ENVPEP2312041_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	19 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312041EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed2-2016 03 29
