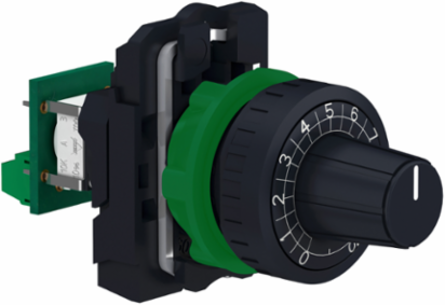

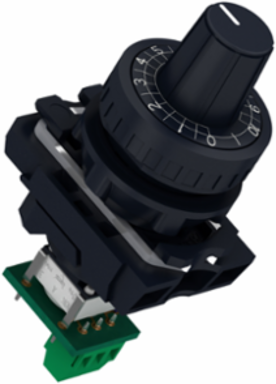

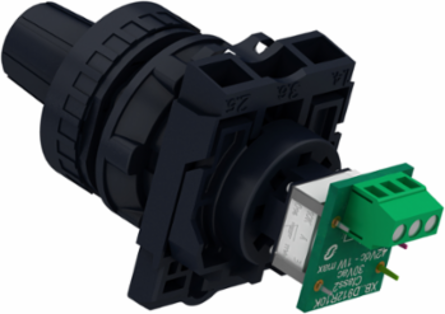

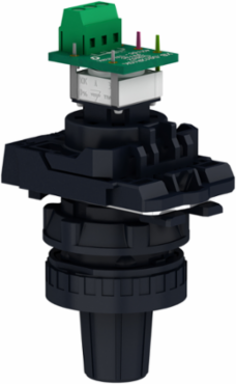

Schneider Electric XB5AD912R1K Harmony XB5 Potentiometer, 22mm, 1k , IP66, 48g
- MPN: XB5AD912R1K
- PPN: SCH-XB5AD912R1K
CAD
$70.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, 22mm diameter potentiometer has a resistance of 1kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States

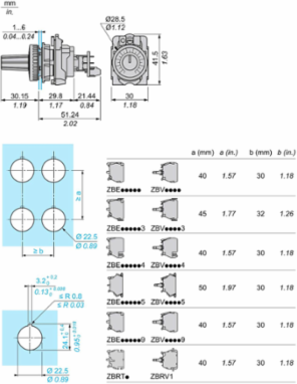

Physical Attributes
- Cad Overall Depth
- 82 mm
- Cad Overall Width
- 30 mm
Cad Overall Height42 mm
Color Of Markingwhite
Complementary Attributes
- Rated Power In W
- 1 W 70 °C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Certificate Agency
- BV, UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.006276754785779399, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.012486235186873291, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.5 kg CO2 eq., 0.46984
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312041EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 27 %
- Compatibility Code
- XB5
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Head Type
- standard
- Material
- cermet
- Mounting Diameter
- 22 mm
- Operator Profile
- knurled knob, with white)
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2312041EN
- Pep Verification Date
- 2024-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 5.4273
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2.0211
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2.0211
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Precision Of Internal Conversion Resistor+-10%, +-10%
[Us] Rated Supply Voltage<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.11017684594348223
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5590337283500456
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2248
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content16 %
Bezel Materialdark grey plastic
Device Short NameXB5
Group Of Productpotentiometer knurled knob
Main Grouppotentiometer
Mechanical Durability50000 cycles
Ohmic Value1000 Ohm
Potentiometer Characteristiclinear
Product Or Component Typepotentiometer
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Color Of Markingwhite
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPotentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %86
Package Weight(Lbs)57.000 g
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]11.033
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]13.055
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]11.033
Customs Code8533408040
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Nema Degree Of Protection
- NEMA 13, NEMA 4X, UL type 4X/13
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Carbon Footprint
- 1.1578135642661804
- Environmental Disclosure
- ENVPEP2312041EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312041EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level16 %
Mercury FreeYes
Circularity ProfileENVEOLI2312041EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityØ 6 mm shaft
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- potentiometer
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001027
ETIM 9EC001027
Overview Attributes
- Device Presentation
- complete product
