Schneider Electric XB4BD912R100K Harmony XB4 Potentiometer, 22mm, 100K Ohm, IP66/IP69K
- MPN: XB4BD912R100K
- PPN: SCH-XB4BD912R100K
CAD
$70.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

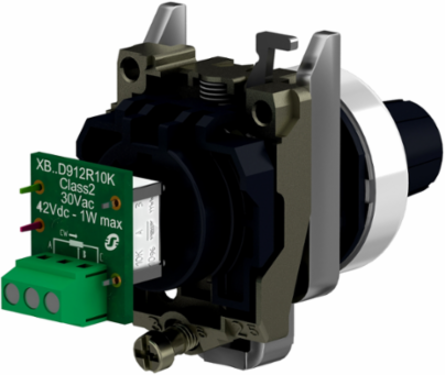

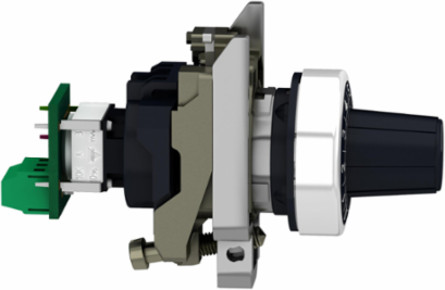

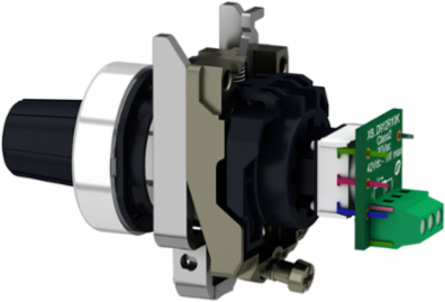

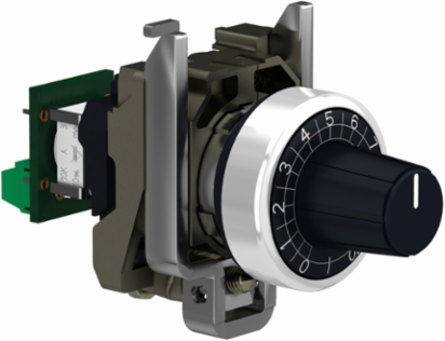

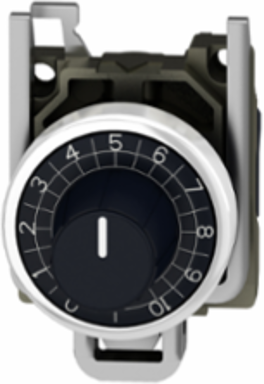

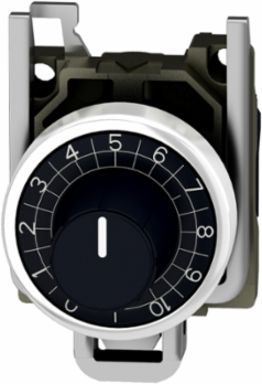

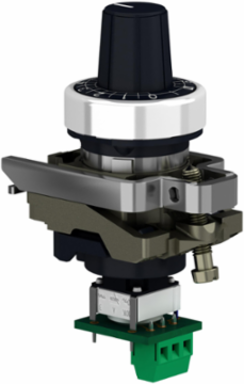

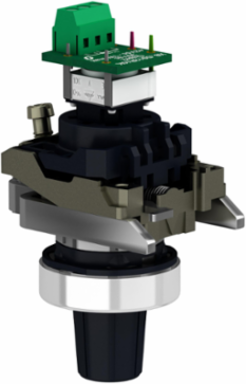

This Harmony XB4 potentiometer has a resistance of 100kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes

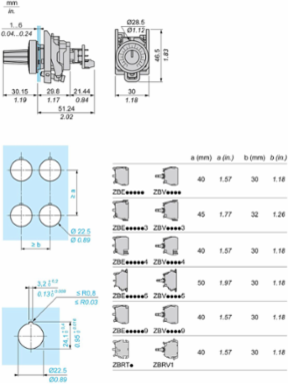

- Cad Overall Depth
- 82 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Color Of Markingwhite
Complementary Attributes
- Rated Power In W
- 1 W 70 °C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Us] Rated Supply Voltage
- <= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.20144
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0221
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 33.61
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312041EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 49 %
- Compatibility Code
- XB4
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Head Type
- standard
- Material
- cermet
- Mounting Diameter
- 22.5 mm
- Operator Profile
- knurled knob, with white)
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Color Of Marking
- white
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Potentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 1
- Package Weight(Lbs)
- 106.0 g
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 1.0181
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 36.5971
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 11.033
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -4.7142
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 5.4273
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 1.4167
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 1.604
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 0.1601
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 13.012
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2.0211
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 11.033
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -4.7142
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Precision Of Internal Conversion Resistor+-10%, +-10%
Certificate AgencyUL Listed, CSA, BV
Carbon Footprint Of The Distribution Phase [A4]0.011476, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.022829, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.5 kg CO2 eq., 0.46984
Local Publishable Date2026-01-12
Future Imap25.96
Stocking FlagN
Manufacturing Carbon Footprint1.0221
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content19 %
Bezel Materialchromium plated metal
Device Short NameXB4
Group Of Productpotentiometer knurled knob
Main Grouppotentiometer
Mechanical Durability50000 cycles
Ohmic Value100000 Ohm
Potentiometer Characteristiclinear
Product Or Component Typepotentiometer
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2312041EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]1.0221
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]12.154
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]13.012
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]79.772
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-8.7763
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.8639
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]12.325
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]13.055
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-4.838
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]11.709
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]13.012
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.0211
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69 IEC 60529, IP69K IEC 60529
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.7276850000000001
- Environmental Disclosure
- ENVPEP2312041EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- Ø 6 mm shaft
- Pep Code
- ENVPEP2312041EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level19 %
Mercury FreeYes
Circularity ProfileENVEOLI2312041EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- potentiometer
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001027
ETIM 9EC001027
