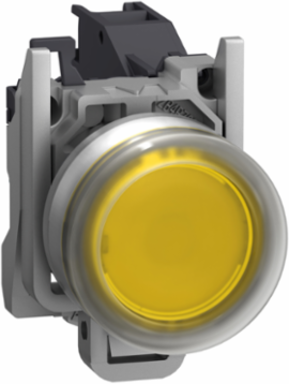

Harmony XB4 Pushbutton 22mm Yellow, IP66, 1 NO Contact
Harmony XB4 Pushbutton 22mm Yellow, IP66, 1 NO Contact
Schneider Electric

Schneider Electric XB4BP581GEX Harmony XB4 Pushbutton 22mm Yellow, IP66, 1 NO Contact

  • MPN: XB4BP581GEX
  • PPN: SCH-XB4BP581GEX

CAD

$124.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Harmony XB4 Pushbutton 22mm Yellow, IP66, 1 NO Contact

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France
Depth72 mm

Physical Attributes

Embedding Depth
58 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL

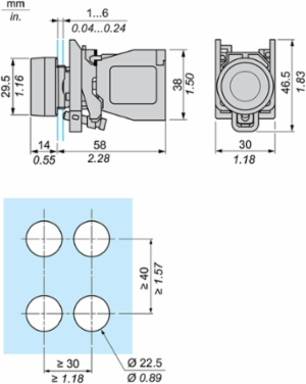

Fixing Center
>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
Operating Travel
1.657 mm engagement point), 4.622 mm changing state point), 4.452 mm total travel)
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.2 kg CO2 eq., 0.1657002372
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.9 kg CO2 eq., 0.9285304864
Local Data Status
Publishable
Return Indicator
Y
Future Msrp
122.77
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Average Percentage Of Recycled Metal Content
18 %
Bezel Material
chromium plated metal
Contact Operation
slow-break
Device Short Name
XB4
Fixing Collar Material
zamak
Mechanical Durability
5000000 cycles
Operating Force
3.962 N
Operator Profile
yellow projecting
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Repair Index
A
Range Of Product
Harmony XB4
Sale Per Indivisible Quantity
1
Software Version
v5.9.4
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Type Of Operator
spring return
Pep Code
ENVPEP2308035_V1-EN
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Height Nominal
30 mm
Certificate Agency
INERIS 04ATEX9004U
[Ui] Rated Insulation Voltage
415 V
Package Weight(Lbs)
131.0 g
Take-back
No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MarkingEx db eb IIC Gb, Ex tb IIIC Db, II 2 GD
[Ie] Rated Operational Current1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]0.0171310083, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0262745907, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.0008697887
Local Publishable Date2026-01-12
Future Imap94.83
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308035EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content19 %
Compatibility CodeXB4
Contacts Type And Composition1 NO
Dust Zonezone 21 - 22
Gas Zonezone 1 - 2
Mounting Diameter22 mm
Operator Additional Informationbooted (clear silicon) for insertion of legend
Positive Openingwithout
Product Or Component Typecomplete push-button
Protective TreatmentTH
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal46.2 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-20-75 °C, -20-75 °C
Take Back
No
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI2308035EN
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level18 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.1385061114
Environmental DisclosureENVPEP2308035_V1-EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308035_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
complete push-button
Range Of ProductHarmony XB4

ETIM

ETIM 8
EC001028
ETIM 9EC001028
