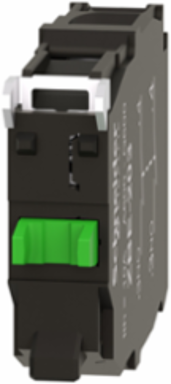

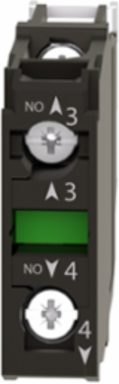

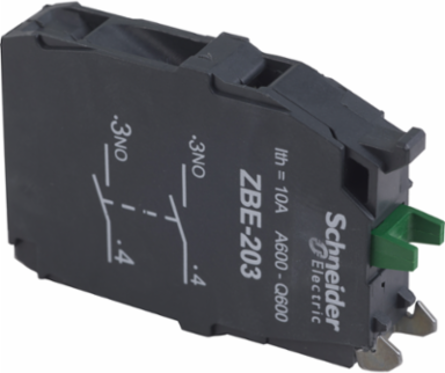

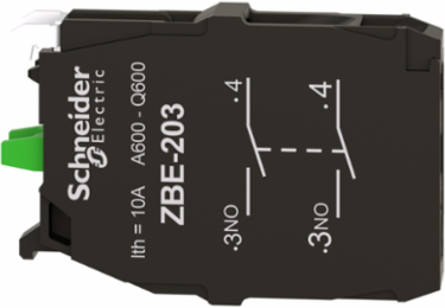

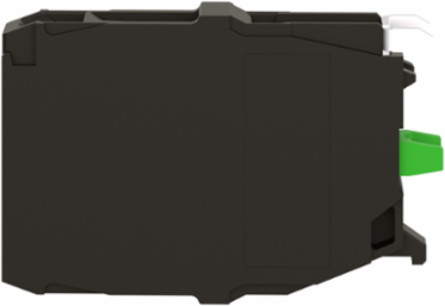

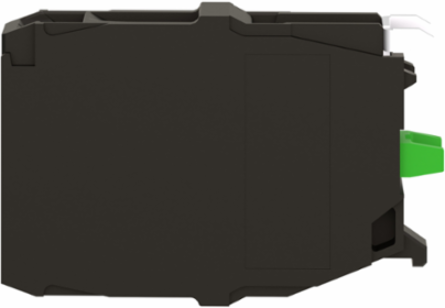

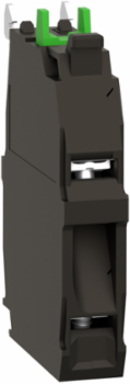

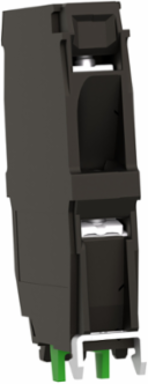

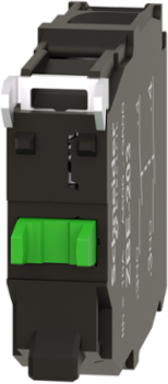

Schneider Electric ZBE203 Harmony XB4 Double Contact Block, 2NO, IP20, Silver Alloy, 0.02 kg
- MPN: ZBE203
- PPN: SCH-ZBE203
CAD
$34.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, double contact block uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This double contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- This standard 22mm contact block is engineered for seamless physical compatibility with both Harmony XB4 (metal) and Harmony XB5 (plastic) push-button and selector switch operator heads. It mounts directly onto standard fixing collars, allowing you to quickly scale or modify your layout without replacing entire switch assemblies.
- The unit features a double contact block configuration with 2 NO (Normally Open) standard contacts, utilizing premium silver alloy (Ag/Ni) for optimal electrical conductivity. This layout lets you control two separate circuits or signals simultaneously from a single actuator, minimizing panel clutter and reducing overall installation footprints.
- Built for demanding electrical loads, this block carries a conventional free-air thermal current (Ith) of 10A and is rated for heavy-duty industrial switching up to 6A at 120VAC or 3A at 240VAC (AC-15, A600 classification). It delivers dependable motor and relay signaling control while remaining safely protected against short-circuits via a standard 10A cartridge fuse.
- Equipped with robust screw clamp terminals, this component supports secure wiring connections up to 2 x 1.5 mm2 with cable ends or down to 1 x 0.22 mm2 for solid wire. The multi-driver screw heads are explicitly shaped to work with Pozidriv No. 1, 4mm flat, or 5.5mm flat screwdrivers, preventing cam-out and stripped screws during tight field wiring installation.
- Designed for high-frequency control applications, this slow-break mechanism boasts an exceptional mechanical durability rating of 10,000,000 operations and an electrical lifespan of 1,000,000 cycles under full load. This ultra-reliable performance substantially decreases equipment downtime and lowers scheduled maintenance overhead in heavy manufacturing or automated assembly lines.
- This rugged industrial component is designed to operate safely in harsh, unconditioned spaces with a certified temperature range spanning from -40 C up to 70 C. Combined with high resistance to shock (up to 50 gn) and vibration (5 gn), it prevents nuisance trips or electrical failures in punishing outdoor control boxes and high-vibration heavy machinery.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Usage
- standard contacts, standard contacts
- Electrical Durability
- 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- GOST, DNV, CSA, UL, LROS (Lloyds register of shipping), CCC, BV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0022230405780989436, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.011973707615341854, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 23 %
- Contact Block Type
- double
- Contacts Material
- silver alloy (Ag/Ni)
- Device Short Name
- ZBE
- Mounting Of Block
- front mounting
- Operating Travel
- 2.6 mm NO changing electrical state)4.3 mm total travel)
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Sale Per Indivisible Quantity
- 5
- Software Version
- v6.2.5-6
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Contacts Composition 6
- 2 NO
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 17.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC2 3 )C4 2 ), C6 2 )C8 1 ), C10 2 ), C13 3 ), M2 2 ), M4 2 ), M8 2 )
Range Of ProductHarmony XB5, Harmony XB4
Connections Terminals 8 Connections Terminalsscrew clamp terminals
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.030873096164535846
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.1054113396331295
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content13 %
Compatibility CodeZBE
Contact Operationslow-break
Contacts Type And Composition2 NO
Mechanical Durability10000000 cycles
Operating Force5 N NO changing electrical state
Positive Openingwithout
Product Or Component Typecontact block
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code"ENVPEP2304014EN"
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Recyclability Potential In %98
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 13 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.15048118399110613
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2304014EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental Disclosure"ENVPEP2304014EN"
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- Harmony XB5, Harmony XB4
Product Or Component Typecontact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
