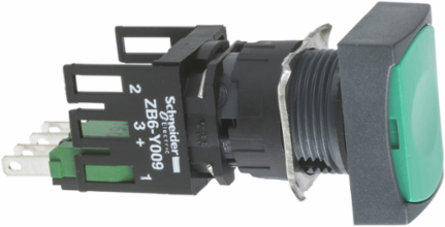

Schneider Electric XB6DA31B Harmony XB6 Green Rectangular Flush Pushbutton 16mm 1NO Spring Return

  • MPN: XB6DA31B
  • PPN: SCH-XB6DA31B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $30.42

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Harmony XB6 Green Rectangular Flush Pushbutton from Schneider Electric exemplifies reliable automation and control functionality, tailored for various industrial applications. With its 16mm size and spring return mechanism, this pushbutton ensures a quick and responsive operator interface, allowing for seamless interaction in a variety of settings. Its robust design and distinct rectangular shape not only enhance usability but also provide a clear signaling indicator, making it an essential component for panel builders looking to optimize their control systems.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Mexico, United States

    Physical Attributes

    Cad Overall Depth57 mm
    Cad Overall Width24 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Certificate AgencyCCC, GOST, CSA, UL
    Carbon Footprint Of The Distribution Phase [A4]0.0015691905, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0013528767, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2403025EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Bezel Materialplastic
    Contact Operationslow-break
    Contacts Type And Composition1 NO
    Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    Mechanical Durability2000000 cycles
    Operating Force3.5 N NO changing electrical state
    Operating Travel1 mm NO changing electrical state)3.5 mm total travel)
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete push-button
    Range Of ProductHarmony XB6
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Type Of Operatorspring return
    Pep CodeENVPEP2403025EN
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ie] Rated Operational Current3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Short-circuit Protection6 A cartridge fuse gG
    Package Weight(Lbs)19.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Terminals Description Iso N°1(13-14)NO, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0217718555
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2680722291
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXB6
    Contacts Materialsilver alloy (Ag/Ni)
    Device Short NameXB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Mounting Diameter16 mm
    Operating Positionany position
    Operator Profilegreen flush, unmarked
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Shape Of Signaling Unit Headrectangular
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %17
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Connections - TerminalsFaston connectors 2.8 x 0.5 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509031

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Nema Degree Of ProtectionNEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2403025EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2403025EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.2927661519
    Environmental DisclosureENVPEP2403025EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typecomplete push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
