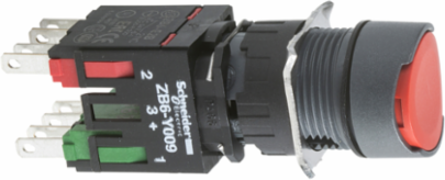

Schneider Electric XB6AA45B Harmony XB6 Red Flush Push Button 16mm Spring Return 1NO + 1NC IP65
- MPN: XB6AA45B
- PPN: SCH-XB6AA45B
CAD
$40.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Engineered for efficiency and versatility, the Harmony XB6 Red Flush Push Button by Schneider Electric is an essential component for automation and control applications. This 16mm push button features a spring return mechanism, with one normally open (NO) and one normally closed (NC) contact, making it adaptable for various control requirements. It is designed to meet IP65 standards, ensuring protection against dust and water, which enhances its reliability in diverse environments. This push button not only offers a functional solution but also incorporates a sleek design that fits seamlessly into any panel setup.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15 B300, 1.5 A 240 V AC-15 B300, 0.1 A 250 V DC-13 R300, 0.22 A 125 V DC-13 R300
- Operating Travel
- 1 mm NO changing electrical state, 2 mm NC changing electrical state, 3.5 mm total travel
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V
- Rated Insulation Voltage
- 250 V EN/IEC 60947-1
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Ambient Air Temperature For Storage
- -40 to 70 C
- Dimensions
- Overall Width 18 mm (0.71 in), Overall Height 18 mm (0.71 in), Overall Depth 57 mm (2.24 in)
- Contacts
- 1 NO + 1 NC
- Operator Type
- Spring return
- Material
- Plastic bezel, Silver alloy (Ag/Ni) contacts
- Shape of Signaling Unit Head
- Round
- NEMA Degree of Protection
- NEMA 13, 4, 4X UL 50 CSA C22.2 No 94
- Vibration Resistance
- +/- 3 mm 2-500 Hz, 5 gn 2-500 Hz IEC 60068-2-6
- Electrical Reliability
- = 10^-8 5 V 1 mA with 90% confidence IEC 60947-5-4
- Standards
- EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, JIS C 852, JIS C 4520, UL 508
Operating Force3.5 N NO changing electrical state, 4.5 N NC changing electrical state
Mechanical Durability2,000,000 cycles
Contact OperationSlow-break
Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1
Ambient Air Temperature For Operation-25 to 70 C
Mounting Diameter16 mm (0.63 in)
Panel Thickness1 to 6 mm (0.03 to 0.23 in)
TerminalsFaston connectors 2.8 x 0.5 mm
Net Weight0.022 kg
Operator ProfileRed flush, unmarked
IP Degree of ProtectionIP65 IEC 60529
Electrical Shock Protection ClassClass II IEC 61140
Shock Resistance30 gn 18 ms half sine wave acceleration, 50 gn 11 ms half sine wave acceleration IEC 60068-2-27
Product CertificationsCSA, GOST, CCC, UL
Environmental ComplianceRoHS exempt, REACH free of SVHC, mercury free, toxic heavy metal free, green premium product
