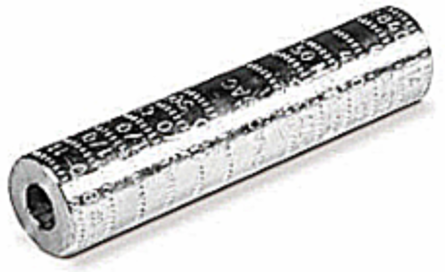

Aluminum Straight Reducing Splices 3 Inch Long, 0.635 Inch OD

Documentation & Downloads

Blackburn SAC 1/0 R 1 CY Aluminum Straight Reducing Splices 3 Inch Long, 0.635 Inch OD

MPN: SAC 1/0 R 1 CY
UPC: 783786805723
PPN: T-B-SAC 1/0 R 1 CY

CAD

$16.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Straigh Reducing Splice, Common Die Series - Side A Concentric/Compressed 1/0 Compact 2/0 Solid 2/0, Side B Concentric/Compressed #1 Compact 1/0 Solid 1/0, Installing Dies CSA 22 5/8 BG 243, with Clear Yellow End Caps

Features

Install with Six Common Dies to Reduce Your Die Inventory.
Dual-Rated for Use with Aluminum and Copper Conductors.
Bores Coated with Oxide Inhibitor to Prevent Oxidation.
Marked with Conductor Sizes and Die References for Easy Identification.
Meets or Exceeds ANSI C119.4 Specifications.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Prefilled with Oxide Inhibitor. Marked with Conductor sizes and Die References for easy Identification. Clear Cap on .352 I.D. End, Yellow Cap on other End.

Standard: ANSI C119.4

Connection: Compression/Crimp

Number Of Conductors: 2

Finish: Bare

IGCC4669 Wire or cable compression splice

TypeAluminum Straight Reducing Splices

ApplicationReducers for general UnderGround applications.

Size3 inch long, Outside Diameter .635 inch

Conductor Range1/0 Stranded or Compressed, 2/0 Compact or Solid to #1 Stranded or Compressed, and #1 Solid

MaterialAluminum

InsulationNone

Packaging

Outer Quantity: 100

Weight Uom: 0.07 lbs. Each

Outer Dimensions (inches)7.5x6x6.5
