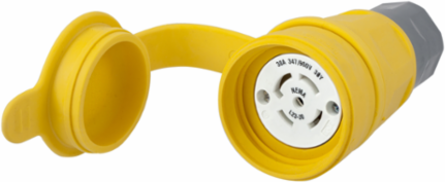

Hubbell Wiring Device-Kellems HBL29W83 Watertight Twist-Lock Connector 30A, 4-Pole, 3-Phase 347/600V, Thermoplastic
- MPN: HBL29W83
- UPC: 783585131955
- PPN: HBL-HBL29W83
- UNSPSC: 39121421
CAD
$199.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Twist-Lock® Connector, 30A, 3 Phase WYE 347/600V AC, 4-Pole, 5 Wire, Thermoplastic elastomer, NEMA L23
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phases
- 3 Phase
- Number of Wires
- 5-Wire
- NEMA Rating
- L23-30R
- Temperature Rise
- 30°C max
- Size
- 2.77 in x 2.77 in x 5.67 in
- Width
- 2.77 in
- Wire Size
- Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S; Max Cord: 8/3 S, 8/4 S, 10/5 S
- Contact Carrier Material
- White Nylon
- Contact Material
- Nickel Plated Brass
- Bushing & Cone Seal Material
- Black Elastomer
- Strain Relief Nut Material
- PBT
- Ingress Protection Rating
- IP69K, UL Listed Type 4, 4X, 12, 6, 6P
- Country of Origin
- PR
Voltage3-Phase Y 347/600 VAC
Number of Poles4-Pole
Dielectric Voltage3500 V AC
Cord Diameter Range0.375-1.125 in
Operating Temperature Range-40°C to +60°C continuous
Length2.77 in
Height5.67 in
Body MaterialThermoplastic Elastomer
Terminal Retainer MaterialClear Polycarbonate
Core MaterialWhite Nylon
Gotcha Ring MaterialNylon
Terminal Screws MaterialNickel Plated Brass
ComplianceUL498 Listed, CSA Certified to C22.2 No. 42, NEMA WD-1, WD-6, ANSI
ColorYellow
