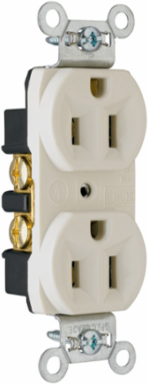

Pass & Seymour CRB5262LA 15A 125V Commercial Spec-Grade Duplex Receptacle Light Almond, 0.78 Inch Depth
- MPN: CRB5262LA
- UPC: 785007210170
- PPN: P-S-CRB5262LA
CAD
$5.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Commercial Spec-Grade Duplex Receptacle Light Almond, 0.78 Inch Depth
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Finish
- Matte
- Product Line
- Pass & Seymour
- Amperage
- 15.0 A
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Dielectric Strength
- Withstands 2000V minimum
ColorLight Almond
Width1.322 in
Country of OriginMexico
StandardUL498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeStraight Blade
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
FeaturesSingle Piece Plated Steel Mounting Strap
