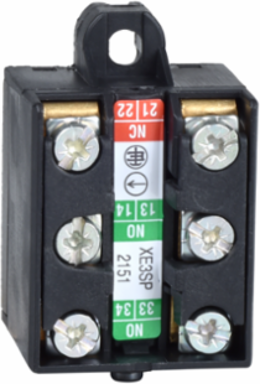

Telemecanique Sensors XE3SP2151 Limit switch contact block, Limit switches XC Standard, 1NC+2 NO, snap action
- MPN: XE3SP2151
- PPN: TES-XE3SP2151
CAD
$82.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block, Limit switches XC Standard, 1NC+2 NO, snap action
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Device Short Name
- XE3S
Contacts Type And Composition2 NO + 1 NC
Contact Operationsnap action
Associated BodyZCKMD31 || ZCKLD31 || ZCKJD31 || ZCD31 || ZCP31 || ZXKSD31
Number Of Poles3
Complementary
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contact Code Designation
- B300, AC-15 (Ue = 240 V), Ie = 1.5 A 6 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Short-Circuit Protection6 A cartridge fuse gG
Minimum Actuation Speed0.01 mm/s
Contacts Materialsilver plated contacts
Product CompatibilityXCKD || XCKP || XCKM || XCKJ || XCKL || XCKS
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
