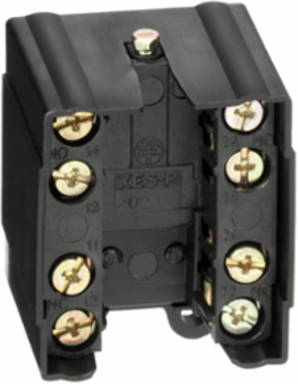

Telemecanique Sensors XESP3021 Limit switch contact block, Limit switches XC Standard, XESP, 2C/O snap action, simultaneous, silver plated
- MPN: XESP3021
- PPN: TES-XESP3021
- UNSPSC: 39121522
CAD
$103.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block, Limit switches XC Standard, XESP, 2C/O snap action, simultaneous, silver plated
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Device Short Name
- XESP
Contacts Type And Composition2 C/O
Contact Operationsnap action, simultaneous
Associated BodyZCKS2
Number Of Poles2
Complementary
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Minimum Actuation Speed
- 0.01 mm/s
- Contacts Material
- silver plated contacts
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
[Ui] Rated Insulation Voltage300 VCSA C22.2 No 14 || 300 VUL 508 || 500 V 3)IEC 60947-1
Positive Openingwithout
Contacts Insulation FormZa
Product CompatibilityXCKS
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
