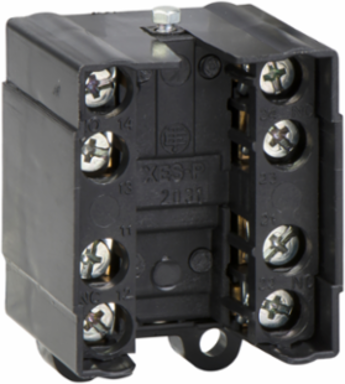

Telemecanique Sensors XESP20315 Limit switch contact block, Limit switches XC Standard, XESP, 2 C/O snap action, staggered, silver plated
- MPN: XESP20315
- PPN: TES-XESP20315
- UNSPSC: 39121522
CAD
$155.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This double-pole 2 CO staggered snap action contact block, is a separate part for the ZCKJ45 limit switch bodies. The ZCKJ45 are 2 steps, fixed bodies to assemble with a wide range of rotary or plunger heads. This industrial format range is conforming to CENELEC EN 50041. It is designed for high temperature application, up to 120°C.
Documentation & Downloads
Specifications
Key Specifications
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch contact block |
| Device Short Name | XESP |
| Contacts Type And Composition | 2 C/O |
|---|---|
| Contact Operation | snap action, staggered |
| Associated Body | ZCKJ45 |
| Number Of Poles | 2 |
Complementary
| Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
|---|---|
| Positive Opening | without |
| Contacts Insulation Form | Za |
| Product Compatibility | XCKJ |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| Minimum Actuation Speed | 0.01 mm/s |
| Contacts Material | silver plated contacts |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Contractual warranty
| Warranty | 18 months |
|---|
