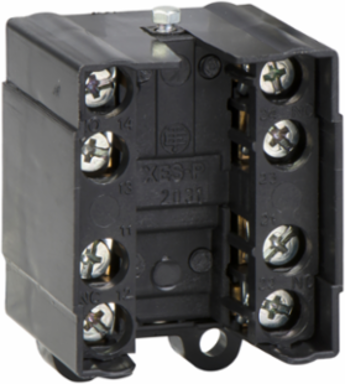

Telemecanique Sensors XESP20215 Limit switch contact block, Limit switches XC Standard, XESP, 2C/O snap action, simultaneous, silver plated
- MPN: XESP20215
- PPN: TES-XESP20215
- UNSPSC: 39121522
CAD
$122.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This double-pole 2 CO simultaneous snap action contact block, is a separate part for the ZCKJ25 limit switch bodies. The ZCKJ25 are 1 step, fixed bodies to assemble with a wide range of rotary or plunger heads. This industrial format range is conforming to CENELEC EN 50041. It is designed for high temperature application, up to 120°C.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Device Short Name
- XESP
Contacts Type And Composition2 C/O
Contact Operationsnap action, simultaneous
Associated BodyZCKJ25
Number Of Poles2
Complementary
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Positive Opening
- without
- Contacts Insulation Form
- Za
- Product Compatibility
- XCKJ
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Minimum Actuation Speed0.01 mm/s
Contacts Materialsilver plated contacts
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
