NEMA Contactor Size 5, 270A, 200HP, 3 Pole, Open
Schneider Electric

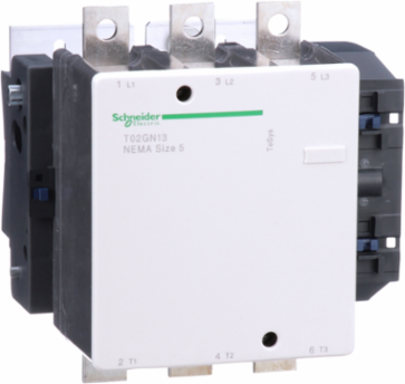

Schneider Electric T02GN13G7 NEMA Contactor Size 5, 270A, 200HP, 3 Pole, Open

  • MPN: T02GN13G7
  • UPC: 785901162193
  • PPN: SCH-T02GN13G7
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 5 nonreversing contactor mounts on 35mm DIN rail and has a 270 amperage continuous current rating. The contactor has ratings of 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.11 inches tall, 8.39 inches wide and 8.71 inches deep. It weighs 20.52 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States
Depth8.71 in

Complementary Attributes

Maximum Horse Power Rating
75 hp 200 V AC100 hp 230 V AC200 hp 460 V AC, 200 hp 575 V AC
Line Rated Current
270 A
Control Circuitcommon control circuit

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Certificate Agency
UL Listed, CSA
Local Publishable Date
2025-11-13
Stocking Flag
N
Device Type
LV equipment - LV contactor
Traceability
No
Average Life Duration
20 year(s)
Weee Product Category
5
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2022
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Control Circuit
common control circuit
Energy Efficiency Optimized
False
Phase
3 phase
Product Or Component Type
contactor
Returnability
Yes
Pep Code
ENVPEP1112001EN
Width Nominal
8.39 in
[Ue] Rated Operational Voltage
600 V AC
Package Weight(Lbs)
9.307 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contactor Applicationnon-reversing
Electrical Connectionlugs ordered separately
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTeSys N
Sustainable PackagingNo
Height Nominal8.11 in
[Uc] Control Circuit Voltage120 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Environmental Disclosure
ENVPEP1112001EN
Nema Degree Of Protection
not rated (open device)
Packaging Made With Recycled Cardboard
No
Pep Code
ENVPEP1112001EN
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Nema Size5
Packaging Without Single Use PlasticNo

General Attributes

Phase
3 phase
Range Of Product
TeSys N
Product Or Component Typecontactor
