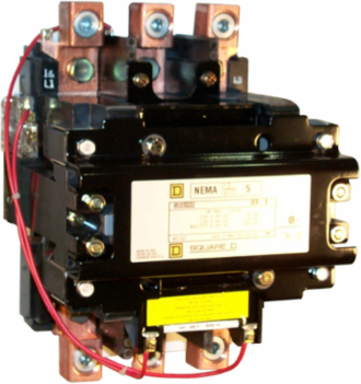

Square D 8502SGO2V03 NEMA Size 5 Non-Reversing Contactor, 270A, 200HP, 3 Phase, Open
- MPN: 8502SGO2V03
- UPC: 785901851103
- PPN: SCH-8502SGO2V03
- UNSPSC: 39121529
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing contactor has a 270 ampere rating. Three phase NEMA Size 5 contactors have 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 220/240 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 12.31 inches tall, 8.67 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Features
- Switch heating loads, capacitors, transformers, and motors (with separate overload protection).
- A normally open holding circuit contact for three wire control is provided as standard.
- AC coils are available for application on 50-60 Hertz.
- Power poles, pneumatic timers, and cover-mounted stations (factory or field installable).
- This product is TAA compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Weight | 22123 g |
| Compliance | TAA Compliant |
|---|---|
| Depth | 222.25 mm |
Complementary Attributes
| Rated Power In Hp | 75 HP 200 V AC100 HP 230 V AC200 HP 460 V AC, 200 HP 575 V AC |
|---|---|
| Line Rated Current | 270 A |
| Ue Rated Operational Voltage | 600 V AC |
| Control Circuit | common control circuit |
|---|---|
| Uc Control Circuit Voltage | 240 V AC 60 Hz220 V AC 50 Hz |
Important Information Attributes
| Certificate Agency | UL listed file E78351 CCN NLDX, CSA |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 39 kg CO2 eq., 38.76930435367467 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 131 kg CO2 eq., 131.02022061957115 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Contactor Application | non-reversing |
| Electrical Connection | screw clamp terminals |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | fuse not supplied |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 220.22 mm |
| Customs Code | 8536490065 |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 54 |
| Carbon Footprint Of The Distribution Phase A4 | 6.393272512769179, 6 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 4.423263212448128, 4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 17 797 kg CO2 eq., 17796.997647865446 |
| Local Publishable Date | 2026-09-04 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Control Type | no control units |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Range Of Product | 8502S |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 17 978 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 312.67 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 17977.60370856391 |
| Eu Rohs Directive | Compliant |
| Nema Size | 5 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2506044EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | circuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC, fuse J 400 A maximum, SCCR: 100 kA at 600 V AC, fuse T 400 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506044EN |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Provided Equipment | fuse not supplied |
| Product Or Component Type | contactor |
|---|---|
| Range Of Product | 8502S |
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
