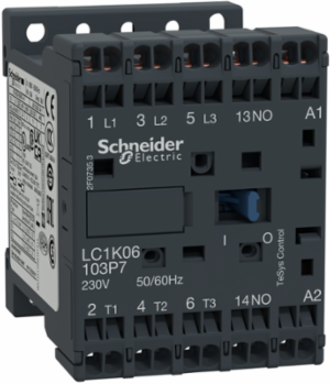

Schneider Electric LC1K06103B7 TeSys K Contactor 3P, 6A, 24V AC Coil, 45mm Width
- MPN: LC1K06103B7
- PPN: SCH-LC1K06103B7
CAD
$65.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

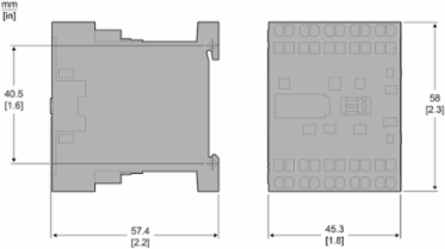

LC1K06103B7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications 6A AC-3 2.2kW@400V. It provides a 24V 50/60Hz AC coil, 1NO auxiliary contact and connections by spring terminals. LC1K06103B7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated 2.2kW@400V. Very compact, DIN-rail compatible, it provides a 24V 50/60Hz AC coil, 1NO built-in auxiliary contact and connections by spring terminals. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides 1NO built-in auxiliary contact and a control circuit compatible with 50Hz and 60Hz supplies. Model with spring terminals for fast wiring and lasting contact quality. Optimized for simple power applications. Can be added with clip-on auxiliary contact blocks with spring terminals (LA1KN.3) and clip-on suppressor modules with LED indicator (LA4K.).
