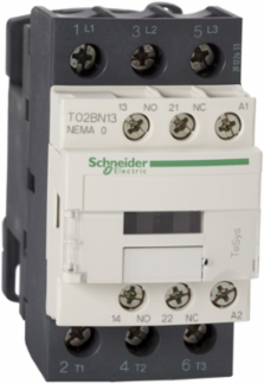

Schneider Electric T02CN13BD TeSys N Non-reversing Contactor, 3P, 27A, 10HP, 24VDC Coil, NEMA 1
- MPN: T02CN13BD
- PPN: SCH-T02CN13BD
CAD
$755.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 1 nonreversing contactor mounts on 35mm DIN rail and has a 27 amperage continuous current rating. This contactor has 2 HP at 115 VAC and 3 HP at 230 VAC single phase ratings. The contactor also has ratings of 7.5 HP at 200 to 230 VAC and 10 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 24 VDC replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 4.00 inches deep. It weighs 1.28 lbs. The screw clamp terminals will accept power wires from 14 AWG to 6 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth4.00 in
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp 200 V AC, 7.5 hp 230 V AC10 hp 460 V AC, 10 hp 575 V AC
- Line Rated Current
- 27 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contactor Application
- non-reversing
- Electrical Connection
- screw clamp terminals
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- TeSys N
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP110229EN
- Width Nominal
- 1.76 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 0.581 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI110229EN
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Circuitcommon control circuit
Energy Efficiency OptimizedFalse
Phase3 phase
Product Or Component Typecontactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal3.34 in
[Uc] Control Circuit Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI110229EN
- Eu Rohs Directive
- Compliant
- Nema Size
- 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP110229EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP110229EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Phase
- 3 phase
- Range Of Product
- TeSys N
Product Or Component Typecontactor
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
