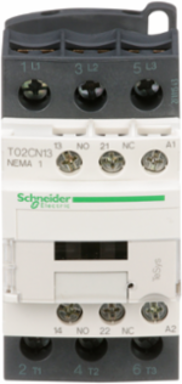

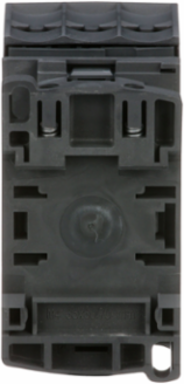

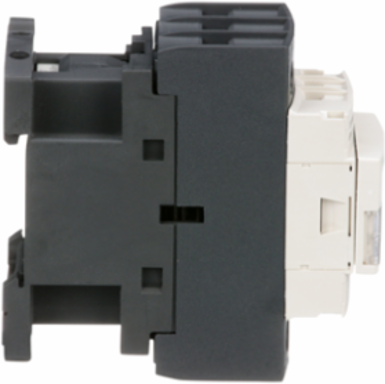

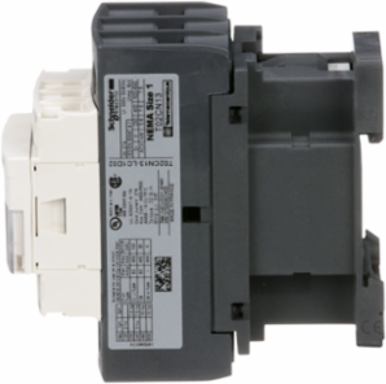

Schneider Electric T02CN13G7 TeSys N Non-Reversing Contactor 3P 27A 10HP at 460VAC NEMA Size 1
Schneider Electric T02CN13G7 TeSys N Non-Reversing Contactor 3P 27A 10HP at 460VAC NEMA Size 1
- MPN: T02CN13G7
- PPN: SCH-T02CN13G7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$712.45/ EA
Description

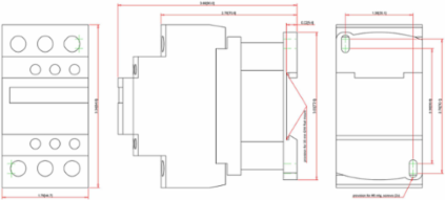

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 1 nonreversing contactor mounts on 35mm DIN rail and has a 27 amperage continuous current rating. This contactor has 2 HP at 115 VAC and 3 HP at 230 VAC single phase ratings. The contactor also has ratings of 7.5 HP at 200 to 230 VAC and 10 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 14 AWG to 6 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
Specifications
Complementary
- [Uc] Control Circuit Voltage
- 120 V AC
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Network Number Of Phases
- 3 phases
- Poles Description
- 3P
- Control Circuit
- common control circuit
- Depth
- 3.66 in
Height3.34 in
Electrical Connectionscrew clamp terminals
Net Weight0.92 lb(US)
[In] Rated Current27 A
Width1.76 in
[Ue] Rated Operational Voltage600 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Eu Rohs DirectiveCompliant
Specifications
- Range Of Product
- TeSys N
- Contactor Application
- non-reversing
- Motor Power Hp
- 7.5 hp 200 V AC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Nema Size1
Product Or Component Typecontactor
Environmental
- Product Certifications
- UL listed || CSA
Nema Degree Of Protectionnot rated (open device)
