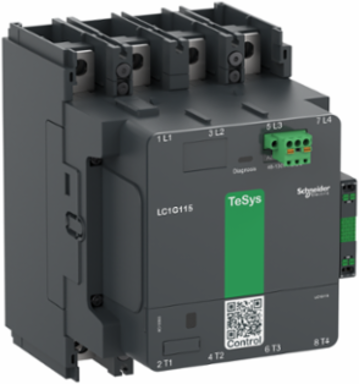

Schneider Electric LC1G1154KUEN TeSys Giga High Power Contactor 4 Pole 250A 100-250V AC/DC Coil

MPN: LC1G1154KUEN
PPN: SCH-LC1G1154KUEN
UNSPSC: 39121529

$1500.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 250A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 143mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.

Features

Designed to meet needs of demanding applications built-in with advanced features and functionalities
Less number of references, simple to select, choose means less inventory
Cable memory kit, saves downtime and improves productivity by performing quick maintenance
Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads
Coil designed for less energy consumption and wider voltage band-width
Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications
Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
Modularity design and compact size for easy maintenance, short down times and less installation space consumption
Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A
Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia
Depth	193 mm

Weight	6251 g

Physical Attributes

Color	dark grey

Complementary Attributes

Maximum Operating Rate	600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1
Ue Rated Operational Voltage	<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Irms Rated Making Capacity	1560 A at 440 V
Rated Breaking Capacity	1040 A at 440 V
Ie Rated Operational Current	115 A (at <60 °C) at <= 440 V AC-3250 A (at <40 °C) at <= 1000 V AC-1
Uimp Rated Impulse Withstand Voltage	8 kV

Uc Control Circuit Voltage	100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
Control Circuit Voltage Limits	operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Motor Phase Current	115 A
Icw Rated Short Time Withstand Current	1.1 kA - 10 s0.64 kA - 30 s0.52 kA - 1 min0.4 kA - 3 min0.32 kA - 10 min
Ui Rated Insulation Voltage	1000 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	125 A aM at <= 440 V for motor, 125 A aM at <= 690 V for motor315 A gG at <= 690 V, 300 A UL Type J at <= 600 V
Power Dissipation Per Pole	10 W AC-1 - Ith 250 A, 3 W AC-3 - Ith 115 A
Connections Terminals	control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Certificate Agency	CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
Carbon Footprint Of The End Of Life Phase C1 To C4	8.449275572139737, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	53 kg CO2 eq., 53.06720782473322
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2105013
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2121
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	built-in bidirectional peak limiting
Connection Pitch	35 mm
Device Short Name	LC1G
Inrush Power In Va	540-540 VA
Mechanical Durability	8 Mcycles
Number Of Poles	4P
Overvoltage Category	III
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Range Of Product	TeSys Giga
Safety Reliability Level	B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	1 157 kg CO2 eq.
Pop Directive	No POPs
Database Version	2024-01
Height Nominal	193 mm
Nbr. Of Units In Pkg.	1
Tsca Regulation	Does not contain Section 6H Chemical
Hold In Power Consumption In Va	12.4-12.4 VA
Rated Thermal Current Ith	250 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	55

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mechanical Robustness	vibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Utilisation Category	AC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Control Circuit Voltage	100...250 V
Carbon Footprint Of The Distribution Phase A4	9.618258068671459, 10 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.07965401712514929
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 086 kg CO2 eq., 1085.5339862320066
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	0.00018 Ohm
Compatibility Code	LC1G
Contactor Application	power switching
Electrical Durability	300 cycles AC-1 400 V
Inrush Power In W	380 W
Mounting Support	plate
Operating Time	40...70 ms closing15...50 ms opening
Pole Contact Composition	4 NO
Product Or Component Type	contactor
Range	TeSys
Returnability	No
Software Version	v6.2.4
Tightening Torque	18 N.m
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv	250 A
Data Source	extrapolated product
Width Nominal	143 mm
Customs Code	8536490065
Ith Conventional Free Air Thermal Current	250 A (at 40 °C)
Hold In Power Consumption In W	7.8-7.8 W
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1314

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-19
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Ip Degree Of Protection	IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	1156.748381714676
Environmental Disclosure	ENVPEP2105013EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2105013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
