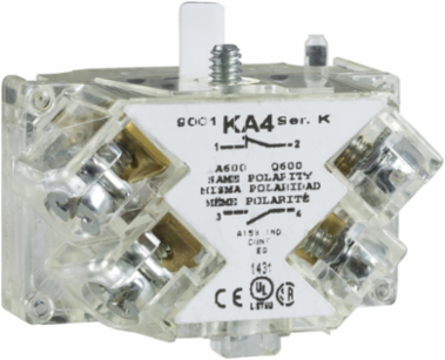

Schneider Electric 9001KA4 Harmony Contact Block 1 NO Silver Alloy Screw Clamp Terminal 0...600V
- MPN: 9001KA4
- UPC: 785901880035
- PPN: SCH-9001KA4
CAD
$55.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x C/O contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features late-break contact operation. It weighs 27g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada, France |
|---|
Complementary Attributes
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
| [Icm] Rated Short-circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-130.27 kA 250 V DC-13 |
| Connections - Terminals | screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.003530659830740598, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00019904168276152685, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 2.2654000000000005 |
| Local Publishable Date | 2026-07-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Operation | early make |
| Contacts Type And Composition | 1 NO |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Shape Of Screw Head | cross slotted |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2312033EN |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Short-circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Package Weight(Lbs) | 27.216 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL 508, NEMA |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Terminals Description Iso N°1 | (1-2-3-4)OC_OFF, (1-2-3-4)OC_OFF |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.07622804368437687 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.2040573094075921 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | 9001K |
| Contacts Material | silver alloy contacts |
| Device Short Name | 9001K |
| Positive Opening | without |
| Product Or Component Type | contact block |
| Returnability | Yes |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Contact blocks are an important electrical component used in a variety of industrial applications. It provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.135 W with 35% utilisation rate and the product has a life of 10 years and adhering to standards IEC 60947-1 & IEC 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 4.1391 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Us] Rated Supply Voltage | 0...600 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 2.549415054605472 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2312033EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2312033EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
| Product Or Component Type | contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
