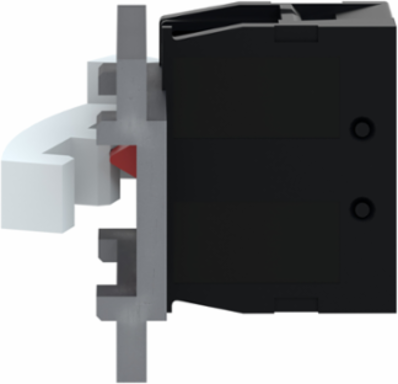

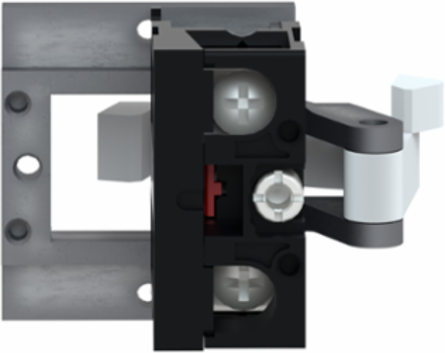

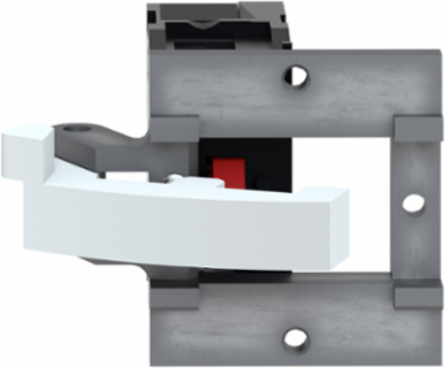

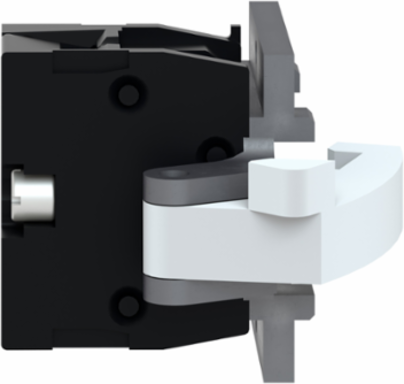

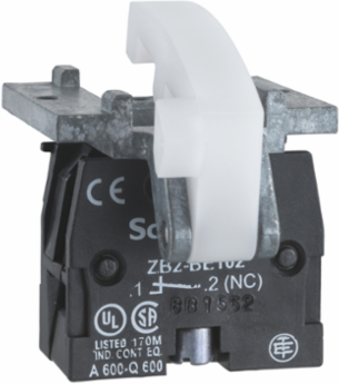

Schneider Electric XACS104 Harmony XAC Spring Return Contact Block, 2 NC, 1000000 Cycles
- MPN: XACS104
- PPN: SCH-XACS104
CAD
$36.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XACS104 is a spring return contact block - 2 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Complementary Attributes
| Maximum Resistance Across Terminals | 25 MOhm |
|---|
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Terminals Description Iso N°1 | (21-22)NC, (11-12)NC, (21-22)NC, (11-12)NC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.12031919191919192 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.25656565656565655 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Component Name | XACS |
| Contact Operation | slow-break |
| Electrical Circuit Type | control circuit |
| Mounting Of Block | base mounting |
| Overvoltage Category | class II conforming to IEC 61140 |
| Product Or Component Type | contact block |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP0709005EN |
| Pep Verification Date | 2024-06-17 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509065 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL 508, CSA C22.2 No 14, IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0068000000000000005, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.008161616161616163, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-09 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Block Type | single |
| Contacts Type And Composition | 2 NC |
| Mechanical Durability | 1000000 cycles |
| Operating Force | 11 N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Short-circuit Protection | 10 A fuse protection cartridge gG |
| Package Weight(Lbs) | 52.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.39184646464646467 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | XACA |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-17 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | contact block |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
