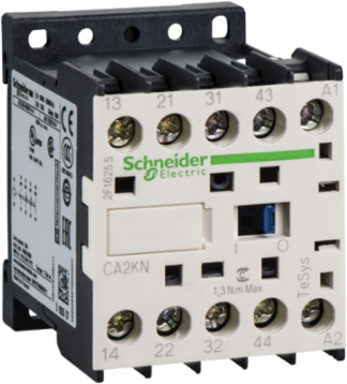

Schneider Electric CA2KN31E7 TeSys K Control Relay, 3 NO + 1 NC, 690V, 48V AC, 10A
Schneider Electric CA2KN31E7 TeSys K Control Relay, 3 NO + 1 NC, 690V, 48V AC, 10A
- MPN: CA2KN31E7
- PPN: SCH-CA2KN31E7
- UNSPSC: 39122331
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$120.88/ EA
Description
TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
- Compatible for all the voltages on the market
- Multiple international certifications
- Control relays for AC or DC control circuits (AC15, DC13)
- Easy to use interface for electronic devices (example: PLCs)
- Various Relay Coil Voltages: AC, DC or low consumption
Specifications
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
StandardsEN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
- IRMS Rated Making Capacity
- 110 A IEC 60947
- Minimum Switching Current
- 5 mA
Control Circuit TypeAC 50/60 Hz
Maximum Operating Rate10000 cyc/h
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660
- Insulation Resistance
- > 10 MOhm, > 10 MOhm
- Mounting Support
- plate, rail
- Tightening Torque
- 1.3 N.m screw clamp terminals flat Ø 6 mm, 1.3 N.m screw clamp terminals Philips No 2 6 mm, 1.3 N.m screw clamp terminals pozidriv No 2
- Ue Rated Operational Voltage2
- <= 690 V <= 400 Hz, <= 690 V <= 400 Hz
- Carbon Footprint Of The Distribution Phase A4
- 0.0699882448144537, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.010778292366401048, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 57 kg CO2 eq., 56.65241524409139
- Connections Terminals3
- screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible with cable end, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
- Ui Rated Insulation Voltage5
- 690 V IEC 60947, 750 V VDE 0110 group C, 690 V BS 5424, 600 V CSA C22.2 No 14
- Local Publishable Date
- 2025-08-09
- Serviceability
- No
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Compatibility Code
- CA2K
- Device Short Name
- CA2K
- Hold In Power Consumption In VA
- 4.5-4.5 VA (at 20 °C)
- Inrush Power In VA
- 30-30 VA (at 20 °C)
- Non Overlap Distance
- 0.5 mm
- Pole Contact Composition
- 3 NO + 1 NC
- Product Or Component Type
- control relay
- Range
- TeSys
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Ith Conventional Free Air Thermal Current2
- 10 A (at 50 °C)
- Medium Desc
- Control relay, TeSys K, 3 NO + 1 NC, lt or eq to 690V, 48VAC coil
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Global Commercial Status
- Commercialised
- Ith Conventional Free Air Thermal Current5
- 10 A (at 50 °C)
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Flame RetardanceV1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor open10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Operating Time10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening
Utilisation CategoryAC-15, DC-13
Ui Rated Insulation Voltage2690 V IEC 60947, 750 V VDE 0110 group C, 690 V BS 5424, 600 V CSA C22.2 No 14
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.2979052988386399
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 0.9753347007368284
Connections Terminalsscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible with cable end, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-1.5 mm²flexible with cable end
Ue Rated Operational Voltage5<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityNo
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Contactor Applicationcontrol circuit
Heat Dissipation1.3-1.3 W
Immunity To Microbreaks2 ms
Mechanical Durability10 Mcycles
Package Weight Lbs180.0 g
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC IEC 60068
Range Of ProductTeSys K control relay
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Uc Control Circuit Voltage248 V AC 50/60 Hz
Stocking FlagY
Pep CodeENVPEP1503003
Pep Verification Date2025-11-21
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Product NameTeSys CAK
Uc Control Circuit Voltage548 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 58.00642178084771
- Ambient Air Temperature For Storage
- -50-80 °C
- Environmental Disclosure
- ENVPEP1503003
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-21
- Psr Version
- PSR-0005-ed3-2023 06 06
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-25-50 °C
Circularity ProfileENVEOLI1503003
IP Degree Of ProtectionIP2X
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP1503003
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys K control relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 57 mm
