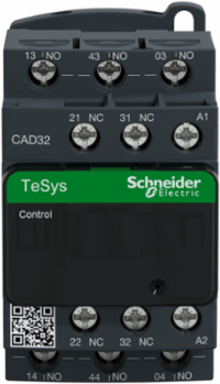

Schneider Electric CAD32G7 TeSys Deca Control Relay, 3NO+2NC, 120V AC, 10A, 45mm Width
- MPN: CAD32G7
- PPN: SCH-CAD32G7
CAD
$113.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Features
- The Schneider Electric CAD32G7 is an industrial control relay from the TeSys Deca (formerly TeSys D) family. Unlike a contactor used to directly power large motors, the CAD relay is designed for heavy-duty logic and signaling. It serves as the "brain" of your control circuit, allowing you to multiply signals, interlock different machine functions, or interface between a PLC and larger power components.
- The "32" in the part number indicates the contact setup: 3 Normally Open (NO) and 2 Normally Closed (NC) instantaneous contacts. This specific mix is ideal for standard safety and motor control logic for example, using the 3 NO contacts to signal "Run" status to multiple systems while using the 2 NC contacts for a "Ready" light and a hardware interlock.
- The "G7" suffix denotes a 120V AC (50/60Hz) coil. This is the most common control voltage used in North American industrial panels, making the CAD32G7 a drop-in staple for Canadian manufacturing plants, allowing it to be powered directly from a standard control transformer (like a Hammond SP100ACP).
- The "G7" suffix denotes a 120V AC (50/60Hz) coil. This is the most common control voltage used in North American industrial panels, making the CAD32G7 a drop-in staple for Canadian manufacturing plants, allowing it to be powered directly from a standard control transformer (like a Hammond SP100ACP).
- Engineered for millions of operations, the CAD32G7 features high-performance contacts designed for "pilot duty" (AC-15/DC-13). It is built to handle the inductive inrush of other contactor coils and solenoids, providing reliable switching in high-vibration Canadian industrial environments such as mining or material handling.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Singapore, Turkey, United States
Depth84 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1250 A DC IEC 60947-5-1
- Minimum Switching Current
- 5 mA
Control Circuit TypeAC 50/60 Hz
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Range
- TeSys, TeSys Deca
- Utilisation Category
- DC-13, AC-15, AC-14
- [Ue] Rated Operational Voltage
- <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
- Connections - Terminals
- screw clamp terminals 2 1-2.5 mm²flexible with cable endscrew clamp terminals 2 1-4 mm²solid without cable endscrew clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2688271654154445, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4052974453589133
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1501004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- CAD
- Device Short Name
- CAD
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Operating Time
- 12...22 ms coil energisation and NO closing4...12 ms coil de-energisation and NO opening4...19 ms coil energisation and NC opening6...17 ms coil de-energisation and NC closing
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range Of Product
- TeSys D control relay
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 18 kg CO2 eq.
- Pole Contact Comp
- 3 NO + 2 NC
- Connections Terminals 55 Connections Terminals
- screw clamp terminals
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 170.82
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 77 mm
- [Icw] Rated Short-time Withstand Current
- 100 A - 1 s120 A - 500 ms140 A - 100 ms
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
- Hold-in Power Consumption In Va
- 8-8 VA 50 Hz (at 20 °C)
- Package Weight(Lbs)
- 396.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportplate, rail
Tightening Torque1.7 N.m screw clamp terminals Philips No 2, 1.7 N.m screw clamp terminals flat Ø 6 mm, 1.7 N.m screw clamp terminals pozidriv No 2
Certificate AgencyCB, CCC, UL, CSA, EAC, CE, UKCA
[Ui] Rated Insulation Voltage600 V UL, 600 V CSA690 V IEC 60947-5-1
Non-overlap Time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.09473546449819852
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.364183683872902
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG conforming to IEC 60947-5-1
Contactor Applicationcontrol circuit
Inrush Power In Va70-70 VA 50 Hz (at 20 °C)
Mechanical Durability30 Mcycles
Pole Contact Composition3 NO + 2 NC
Product NameTeSys CAD
Protective TreatmentTH IEC 60068
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21120 V AC 50/60 Hz
Pep CodeENVPEP1501004EN
Pep Verification Date2026-03-17
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %66
Width Nominal45 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP1501004EN
- Ip Degree Of Protection
- IP2X front face VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint18.13304375914546
Circularity ProfileENVEOLI1501004
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1501004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys D control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
