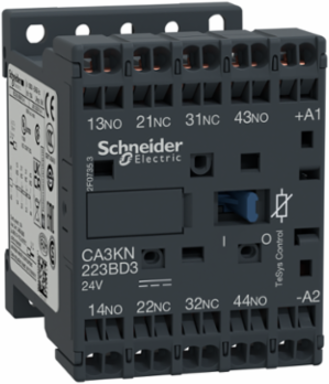

Schneider Electric CA3KN223BD3 TeSys K Control Relay 4P (2NO + 2NC) 10A 690V 24V DC
- MPN: CA3KN223BD3
- PPN: SCH-CA3KN223BD3
CAD
$168.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia
Depth57 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8...1.15 Uc (at <50 °C), drop-out: 0.1...0.75 Uc (at <50 °C)
- Irms Rated Making Capacity
- 110 A IEC 60947
- Minimum Switching Current
- 5 mA
Control Circuit TypeDC standard
Maximum Operating Rate10000 cyc/h
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor open10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
- Operating Time
- 10 ms coil de-energisation and NO opening, 30...40 ms coil energisation and NO closing, 15 ms coil de-energisation and NC closing, 25...35 ms coil energisation and NC opening
- Certificate Agency
- CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947, 750 V VDE 0110 group C, 690 V BS 5424, 600 V CSA C22.2 No 14
- Carbon Footprint Of The Distribution Phase [A4]
- 0.44788985837361034, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.030790567716644686, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 58 kg CO2 eq., 57.502201472752766
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Contactor Application
- control circuit
- Heat Dissipation
- 3-3 W
- Inrush Power In W
- 3-3 W 20 °C)
- Mechanical Durability
- 20 Mcycles
- Pole Contact Composition
- 2 NO + 2 NC
- Product Name
- TeSys CAK
- Protective Treatment
- TC IEC 60068
- Range Of Product
- TeSys K control relay
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 59 kg CO2 eq.
- Pole Contact Comp
- 2 NO + 2 NC
- Control Circuit Voltage 21 Control Circuit Voltage
- 24 V
- Pep Code
- ENVPEP1503003EN
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 63
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 24 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Flame RetardanceV1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Mounting Supportrail, plate
Utilisation CategoryDC-13, AC-15
[Ue] Rated Operational Voltage<= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
Connections - Terminalsspring terminals 1 0.75-1.5 mm²solid, spring terminals 1 0.75-1.5 mm²flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3252530073380666
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.1604911093025383
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2448
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeCA3K
Device Short NameCA3K
Immunity To Microbreaks2 ms
Insulation Resistance> 10 MOhm> 10 MOhm
Non Overlap Distance0.5 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecontrol relay
RangeTeSys
ReturnabilityNo
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 2124 V
Connections Terminals 55 Connections Terminalsspring terminals
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh142.2624
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal58 mm
[Ith] Conventional Free Air Thermal Current10 A (at 50 °C)
Hold-in Power Consumption In W3-3 W 20 °C
Package Weight(Lbs)226.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 59.46662601548363
- Environmental Disclosure
- ENVPEP1503003EN
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-50-80 °C, -50-80 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1503003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys K control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
