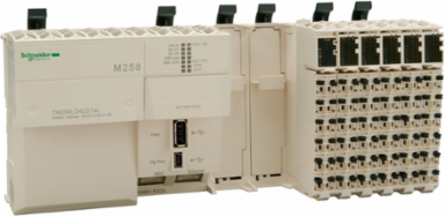

Schneider Electric TM258LD42DT4L Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.77 kg
- MPN: TM258LD42DT4L
- PPN: SCH-TM258LD42DT4L
CAD
$2345.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.77 kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth85 mm
Complementary Attributes
- Integrated Connection Type
- 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s, 2 free slots PCI
- Line Rated Current
- 0.04 A embedded expert modules power10 A I/O power segment0.31 A main supply
Maximum Cable Distance Between Devices<30 m fast input, <30 m fast input, <30 m fast output, <30 m fast output, <30 m regular input, <30 m regular input<30 m fast input, <30 m fast input, <30 m fast output, <30 m regular input
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
- Peak Current
- 100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power1.2 A > 70 s)main supply
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
- Voltage State 1 Guaranteed
- >= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input
- [Us] Rated Supply Voltage
- 24 V DC embedded expert modules power, 24 V DC I/O power segment, 24 V DC main supply
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Anti Bounce Filtering
- 2 µs...4 ms configurable fast input/regular input and fast output
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Isolation Between Channels And Internal Logic
- 500 Vrms AC
- Memory Description
- flash 128 MBinternal RAM 64 MB
- Power Consumption In W
- 14.14 W
- Product Or Component Type
- logic controller
- Realtime Clock
- without any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
- Shock Resistance
- 15 gn 11 ms
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 237.5 mm
- Disturbance Radiated/Conducted
- CISPR 11
- Package Weight(Lbs)
- 926.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED per channel I/O state1 LED CAN0 STS, 1 LED MBS COM1 LED green/red APP0, 1 LED green/red APP1, 1 LED green/red Eth NS (Ethernet network status), 1 LED green/red Eth ST (Ethernet status), 1 LED green/red RUN/MS (module status), 1 LED green/red USB host1 LED green/yellow Eth LA (Ethernet activity)1 LED red BATT (battery status)
Product Specific Application-, -
Voltage State 0 Guaranteed<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input
Certificate AgencycULus, CSA, GOST-R, C-tick
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Data Backed Upvariables of type retain and retain persistent CR2477M Renata, 1.5 years
Isolation Between Channelsnone
MarkingCE
Mounting Supportsymmetrical DIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon M258
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
ReturnabilityNo
Supply Voltage Limits20.4-28.8 V
Vibration Resistance1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Height Nominal99 mm
Discrete I/O Number42
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Storage Altitude
- 0-3000 m
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M258
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 4 mA fast output
- Discrete Output Number
- 12 output4 fast output
- Output Voltage Limits
- 19.2...28.8 V
Discrete Output Logicsource
Discrete Output Voltage24 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- current 0...20 mA, current 4...20 mAvoltage +/- 10 V
- Discrete Input Logic
- sink fast input, sink regular inputsource input
- Analogue Input Number
- 4
- Counting Input Number
- 8 200 kHz
- Discrete Input Voltage
- 24 V
Discrete Input Current4 mA fast input, 4 mA regular input
Input Impedance6 kOhm fast input, 6 kOhm regular input
Analogue Input Resolution12 bits
Discrete Input Number10 fast input12 input4 regular input
Discrete Input Voltage TypeDC
