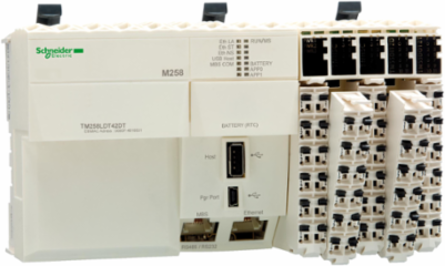

Schneider Electric TM258LD42DT Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.5 kg
- MPN: TM258LD42DT
- PPN: SCH-TM258LD42DT
CAD
$2017.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.5 kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth85 mm
Complementary Attributes
- Integrated Connection Type
- 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s
- Line Rated Current
- 0.04 A embedded expert modules power0.25 A main supply10 A I/O power segment
Maximum Cable Distance Between Devices<30 m fast input, <30 m fast input, <30 m fast output, <30 m fast output, <30 m regular input, <30 m regular input<30 m fast input, <30 m fast input, <30 m fast output, <30 m regular input
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
- Peak Current
- 100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power1.2 A > 70 s)main supply
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
- Voltage State 1 Guaranteed
- >= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input
- [Us] Rated Supply Voltage
- 24 V DC embedded expert modules power, 24 V DC I/O power segment, 24 V DC main supply
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Data Backed Up
- variables of type retain and retain persistent CR2477M Renata, 1.5 years
- Isolation Between Channels
- none
- Marking
- CE
- Mounting Support
- symmetrical DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M258
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
- Returnability
- Yes
- Supply Voltage Limits
- 20.4-28.8 V
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
- Height Nominal
- 99 mm
- Discrete I/O Number
- 42
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED per channel I/O state1 LED CAN0 STS, 1 LED MBS COM1 LED green/red APP0, 1 LED green/red APP1, 1 LED green/red Eth NS (Ethernet network status), 1 LED green/red Eth ST (Ethernet status), 1 LED green/red RUN/MS (module status), 1 LED green/red USB host1 LED green/yellow Eth LA (Ethernet activity)1 LED red BATT (battery status)
Product Specific Application-, -
Voltage State 0 Guaranteed<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input
Certificate AgencyC-tick, CSA, cULus, GOST-R
Local Data StatusPublishable
Return IndicatorY
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output
Electromagnetic CompatibilityEN/IEC 61000-4-6
Isolation Between Channels And Internal Logic500 Vrms AC
Memory Descriptionflash 128 MBinternal RAM 64 MB
Power Consumption In W13.03 W
Product Or Component Typelogic controller
Realtime Clockwithout any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal175 mm
Disturbance Radiated/ConductedCISPR 11
Package Weight(Lbs)773.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Storage Altitude
- 0-3000 m
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M258
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 4 mA fast output
- Discrete Output Number
- 12 output4 fast output
- Output Voltage Limits
- 19.2...28.8 V
Discrete Output Logicsource
Discrete Output Voltage24 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 4 mA fast input, 4 mA regular input
- Input Impedance
- 6 kOhm fast input, 6 kOhm regular input
- Discrete Input Number
- 10 fast input12 input4 regular input
- Discrete Input Voltage Type
- DC
Discrete Input Logicsink fast input, sink regular inputsource input
Counting Input Number8 200 kHz
Discrete Input Voltage24 V
