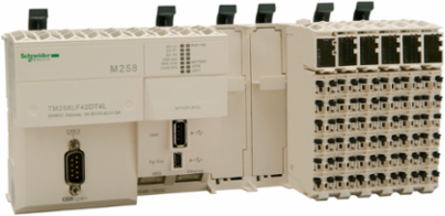

Schneider Electric TM258LF42DT4L Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.77 kg

  • MPN: TM258LF42DT4L
  • PPN: SCH-TM258LF42DT4L

CAD

$2815.48

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.77 kg

Documentation & Downloads

Specifications

Key Specifications

Country of OriginAustria, Brazil, France
Depth85 mm

Complementary Attributes

Integrated Connection Type1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s, 2 free slots PCI1 CANopen male SUB-D 9 CANopen master
Line Rated Current0.04 A embedded expert modules power10 A I/O power segment0.31 A main supply
Maximum Cable Distance Between Devices<30 m fast input, <30 m fast input, <30 m fast output, <30 m fast output, <30 m regular input, <30 m regular input<30 m fast input, <30 m fast input, <30 m fast output, <30 m regular input

Important Information Attributes

Persona Type IdsEU, OM, OM8
Configurable Filtering Time0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
Peak Current100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power1.2 A > 70 s)main supply
Resistance To Fast Transients1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
Voltage State 1 Guaranteed>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input
[Us] Rated Supply Voltage24 V DC embedded expert modules power, 24 V DC I/O power segment, 24 V DC main supply
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output
Electromagnetic CompatibilityEN/IEC 61000-4-6
Isolation Between Channels And Internal Logic500 Vrms AC
Memory Descriptionflash 128 MBinternal RAM 64 MB
Power Consumption In W14.14 W
Product Or Component Typelogic controller
Realtime Clockwithout any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Sustainable PackagingNo
Vibration Resistance1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Height Nominal99 mm
Discrete I/O Number42
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED per channel I/O state1 LED CAN0 STS, 1 LED MBS COM1 LED green/red APP0, 1 LED green/red APP1, 1 LED green/red Eth NS (Ethernet network status), 1 LED green/red Eth ST (Ethernet status), 1 LED green/red RUN/MS (module status), 1 LED green/red USB host1 LED green/yellow Eth LA (Ethernet activity)1 LED red BATT (battery status)
Product Specific Application-, -
Voltage State 0 Guaranteed<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input
Certificate AgencycULus, CSA, GOST-R, C-tick
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Data Backed Upvariables of type retain and retain persistent CR2477M Renata, 1.5 years
Isolation Between Channelsnone
MarkingCE
Mounting Supportsymmetrical DIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon M258
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
ReturnabilityNo
Supply Voltage Limits20.4-28.8 V
Transmission Rate125 kbit/s 500-500 m CANopen250 kbit/s 250-250 m CANopen50 kbit/s 1000-1000 m CANopen500 kbit/s 100-100 m CANopen10 kbit/s 5000-5000 m CANopen1000 kbit/s 4-4 m CANopen20 kbit/s 2500-2500 m CANopen800 kbit/s 25-25 m CANopen
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal237.5 mm
Disturbance Radiated/ConductedCISPR 11
Package Weight(Lbs)927.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation

General Attributes

Product Or Component Typelogic controller
Range Of ProductModicon M258

ETIM

ETIM 8EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Current4 mA fast output
Discrete Output Number12 output4 fast output
Output Voltage Limits19.2...28.8 V
Discrete Output Logicsource
Discrete Output Voltage24 V DC

Surge Protection And Filtering Attributes

Configurable Filtering Time0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
Surge Withstand0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Input Attributes

Analogue Input Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V
Discrete Input Logicsink fast input, sink regular inputsource input
Analogue Input Number4
Counting Input Number8 200 kHz
Discrete Input Voltage24 V
Discrete Input Current4 mA fast input, 4 mA regular input
Input Impedance6 kOhm fast input, 6 kOhm regular input
Analogue Input Resolution12 bits
Discrete Input Number10 fast input12 input4 regular input
Discrete Input Voltage TypeDC
Modicon M258 Logic Controller, 42 I/O, 24V DC, IP20, 0.77 kg
