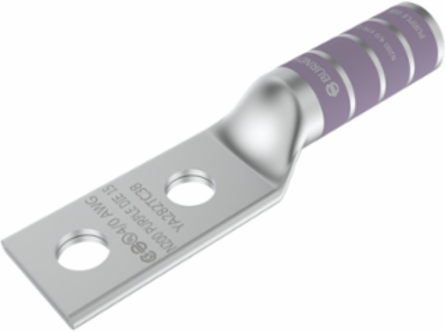

Burndy YA282NDTS Copper Compression Terminal 4/0 AWG, 1/2" Stud, Tin-Plated, 2-Hole Design
- MPN: YA282NDTS
- UPC: 781810086025
- PPN: BUR-50215T
- UNSPSC: 39121448
CAD
$57.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
YA282NDTS, Copper Compression Terminal, 4/0 AWG Cu, 200 Navy Str, 2-Hole, 1/2" Stud, 1.75" Spacing, Long Barrel, Soldered Seam, No Skive, Tin Plated
Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Str Size Range
- 4/0 AWG
- Description - Slang
- TERM CODE LG BBL MISC
- Dimension - B Length inch
- 1.62 in
- Dimension - Bolt Size inch
- 0.5
- Dimension - Hole Size inch
- 0.56
- Dimension - L Length Overall mm
- 131 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.00 in
- Dimension - Stud Size fraction
- 1/2
- Width
- 0.69 in
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Straight
- Plating Type
- Tin plated
- Standards - RoHS Compliance Status
- CM
- Application
- Wire Termination
- Finish
- Tin-Plated
- Standard
- UL 486A-486B
- Type
- Terminal
- Conductor Size
- 4/0 AWG
- Construction Material - Main
- Copper
- ARRA Compliant
- Yes
- Class Code
- B55
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Die Index
- 15
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810086025
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810086026
- Each - Pack Description
- Each
- Package - Gross Weight per Pack
- 10.5 lb.
- Package - Number of Sub Packs
- 50
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810086025
- Package Quantity
- 50 EA
- Pallet - GTIN - Package
- 70781810086024
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
- NAICS Code
- 3359319104
Conductor - Copper Str Size4/0 AWG
Conductor - MaterialCOPPER
Dimension - B Length fraction1 - 5/8
Dimension - Bolt Size fraction1/2
Dimension - Hole Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch5.06 in
Dimension - Outside Diameter inch0.69 in
Dimension - Strip Length inch1-11/16
Dimension - Z inch0.64 in
Feature - Barrel StyleChamfered
Industry Standard(s)UL 486A-486B
Physical Attribute - Tongue AngleStraight
PlatedY
Product TypeTERMINAL
Trade NameHYLUG™
Conductor TypeCODE
MaterialCopper
Sub BrandHYLUG
Voltage Rating35 kV
Connector TypeLONG BARREL
Finish TypeTin-Plated
Certification AgencyProposition 65
Description - InvoiceCUHYLUG 4/0 2HOLE DTS
Harmonization Code8535908020
Lead Time12 wk
Order Multiple1 EA
Sub Class CodeB55BH9F
Number of Pad Holes2
Color CodePurple
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30781810086026
Package - Pack DescriptionPackage
Package - Total Units50 EA
Package Weight0.000 lb.
Pallet Height46.750 in
Pallet Weight1987.500 lb.
Standard Package Quantity50
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- No
- UL Recognized
- No
CSA ApprovedYes
ETLNo
