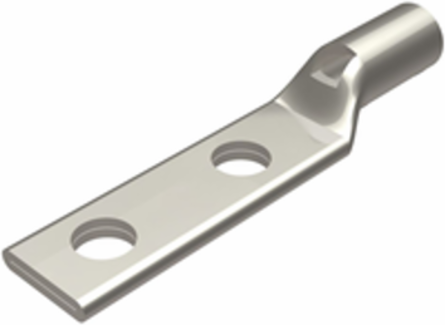

Burndy YAG27L2NTCFX Copper Compression Terminal
- MPN: YAG27L2NTCFX
- UPC: 781810100479
- PPN: BUR-001743
- UNSPSC: 39121405
CAD
$45.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cu Tubing Hylug, 2 Holes w/o Inspection Window, 3/0 AWG Flex,150 Navy, 600V-35kV, 1/2" stud, Standard, Compression, 0.56 in BCD, Orange.
Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instruction
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper DLO Size Range
- 3/0 AWG
- Conductor - Copper Flex G Size Range
- 3/0 AWG
- Conductor - Copper Flex H Size Range
- 3/0 AWG
- Conductor - Copper Flex I Size Range
- 3/0 AWG
- Conductor - Copper Flex K Size Range
- 3/0 AWG
- Conductor - Copper Flex M Size Range
- 3/0 AWG
- Conductor - Copper Str Navy Size
- 150
- Conductor - Copper Str Size
- "3/0 AWG"
- Conductor - CopperWeld Str Size
- 3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
- Conductor - Material
- COPPER
- Dimension - B Length inch
- 1.00 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.03 in
- Dimension - Hole Size inch
- 0.56
- Dimension - L Length Overall mm
- 116 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.03 in
- Dimension - Stud Size fraction
- 1/2
- Width
- 1.03 in
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Product Type
- TERMINAL
- Trade Name
- HYLUG™
- Standard
- UL 486A-486B
- Type
- Standard Barrel, Tin Plated
- Conductor Size
- 3/0 AWG
- Connector Type
- STANDARD BARREL
- Temperature Rating
- 194
- ARRA Compliant
- Yes
- Class Code
- B55
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Die Index
- 14
- UL Listed
- Yes
- Material
- Copper
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50
- Each - Number of Sub Packs
- 1 EA
- Lowest Level UOM
- Each
- Package - GTIN - Package
- 30781810100470
- Package - Pack Description
- Package
- Package - Total Units
- 50 EA
- Package Weight
- 0.000 lb.
- Pallet Height
- 46.750 in
- Pallet Weight
- 1377.000 lb.
- Standard Package Quantity
- 50
Conductor - Copper DLO Size3/0 AWG
Conductor - Copper Flex G Size"3/0 AWG"
Conductor - Copper Flex H Size"3/0 AWG"
Conductor - Copper Flex I Size"3/0 AWG"
Conductor - Copper Flex K Size"3/0 AWG"
Conductor - Copper Flex M Size"3/0 AWG"
Conductor - Copper Str Compact Size"3/0 AWG"
Conductor - Copper Str Navy Size Range150 (61) Navy
Conductor - Copper Str Size Range3/0 AWG
Conductor - CopperWeld Str Size Range3/0 E AWG-3/0 V AWG
Description - SlangTERM FX STD BBL TN TEL
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size inch0.5
Dimension - Hole Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.56 in
Dimension - Outside Diameter inch0.70 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.65 in
Feature - Barrel StyleChamfered
Industry Standard(s)UL 486A-486B
Physical Attribute - Tongue AngleStraight
Plating TypeTin Plated
Standards - RoHS Compliance StatusCM
ApplicationWire Termination
Sub BrandTERMINALS, HYLUG
Voltage Rating35 kV
Conductor TypeCODE/FLEX
Finish TypeTin-Plated
Wire Size3/0 AWG
Certification AgencyProposition 65
Description - InvoiceCULUG-3/0FLEX-2NEMA-TNPL
Harmonization Code8535908020
Lead Time12 wk
Order Multiple1 EA
Sub Class CodeB55BHCF
Number of Pad Holes2
Color CodeOrange
Voltage - Maximum35000
BOX SIZE5.125x7.373x6.438 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00781810100479
Case - SCC-14 Next Lower Level Sub Pack30781810100470
Each - Pack DescriptionEach
Package - Gross Weight per Pack9 lb.
Package - Number of Sub Packs50 EA
Package - SCC-14 Next Lower Level Sub Pack00781810100479
Package Quantity50 EA
Pallet - GTIN - Package70781810100478
Pallet Length48.000 in
Pallet Width40.000 in
NAICS Code3359319104
Certifications
- CSA Approved
- Yes
- ETL
- No
- EU RoHS Indicator
- Yes
cULusNo
UL RecognizedNo
